Automatic Transaxle Control System Wiring Diagram

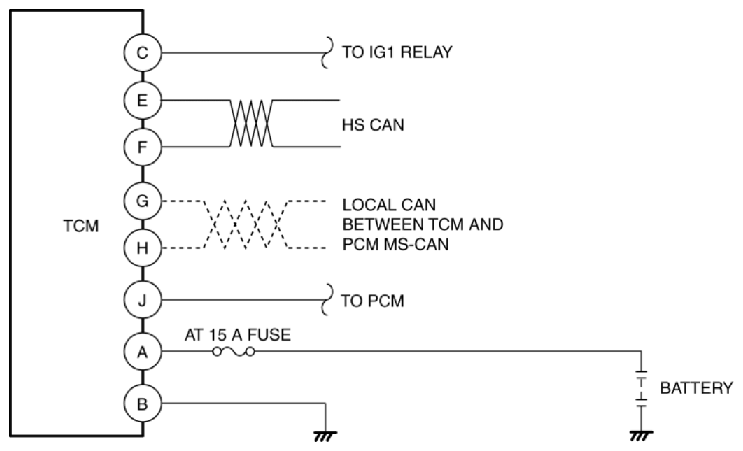

Fig 1: Automatic Transaxle Control System Wiring Diagram (EW6A-EL/EW6AX-EL)

G10909763

Courtesy of MAZDA MOTORS CORP.
