Liftgate Light Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Fogging or dew condensation may occur on the inside of the liftgate light because of a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the liftgate light. However, it has no effect on the light performance because the phenomenon is resolved when temperature inside the liftgate light rises after the back-up light turns on or a period of time has elapsed.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    5. Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

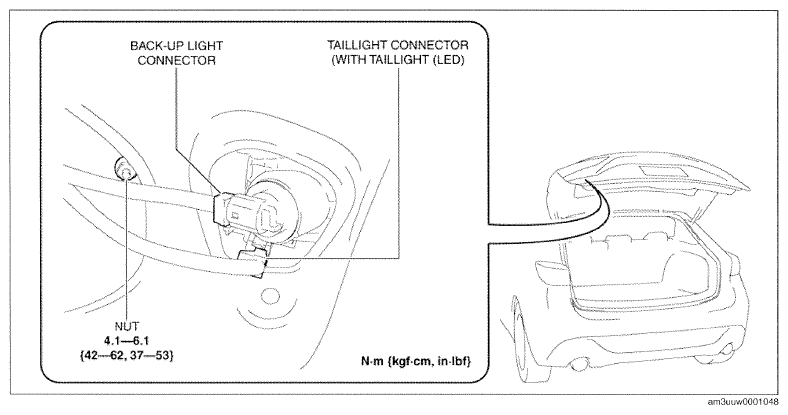

    Fig 1: Disconnecting Connector Of Liftgate Light With Torque Specifications
    G09772511Courtesy of MAZDA MOTORS CORP.
  4. Remove the nut.
  5. Insert the remover tool into the service hole at the position shown in the figure.
    Fig 2: Inserting Remover Tool Into Service Hole At Position
    G09772512Courtesy of MAZDA MOTORS CORP.
  6. Move the remover tool in the direction of arrow (1) shown in the figure to detach the tab of the service hole cover from the bracket.
    Fig 3: Detaching Tab Of Service Hole Cover From Bracket
    G09772513Courtesy of MAZDA MOTORS CORP.
  7. Pull the guide of the service hole cover in the direction of arrow (2) shown in the figure and remove the service hole cover.
  8. Insert the remover tool into the gap between tab (1) of the bracket and liftgate light.

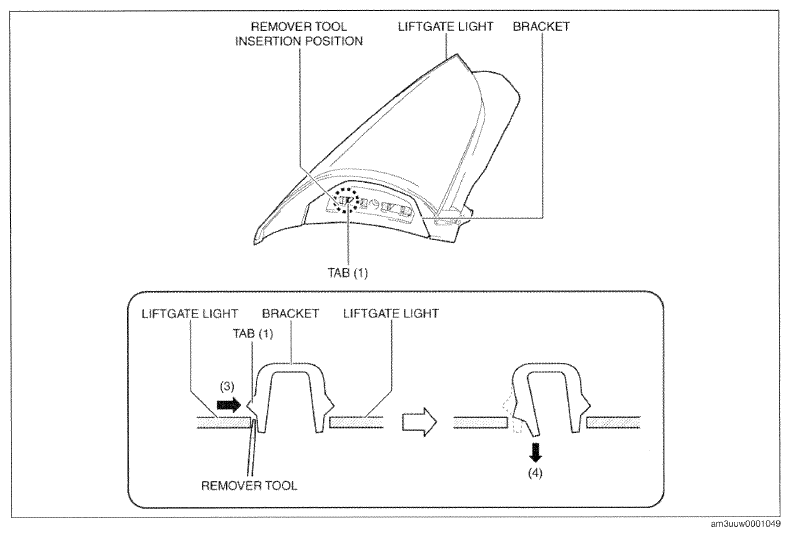

    Fig 4: Identifying Gap Between Tab (1) Of Bracket And Liftgate Light
    G09772514Courtesy of MAZDA MOTORS CORP.
  9. While pressing tab (1) of the bracket in the direction of arrow (3) shown in the figure using the remover tool, pull the bracket in the direction of arrow (4) to detach tab (1) of the bracket from the liftgate light.
  10. Insert the remover tool into the gap between tab (2) of the bracket and the liftgate light.

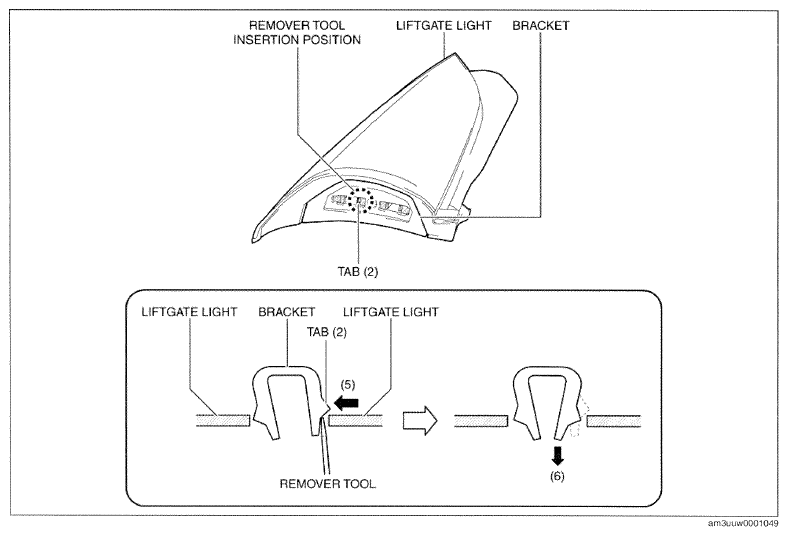

    Fig 5: Identifying Gap Between Tab (2) Of Bracket And Liftgate Light
    G09772515Courtesy of MAZDA MOTORS CORP.
  11. While pressing tab (2) of the bracket in the direction of arrow (5) shown in the figure using the remover tool, pull the bracket in the direction of arrow (6) to detach tab (2) of the bracket from the liftgate light.
  12. Insert the remover tool into the gap between tab (3) of the bracket and the liftgate light.

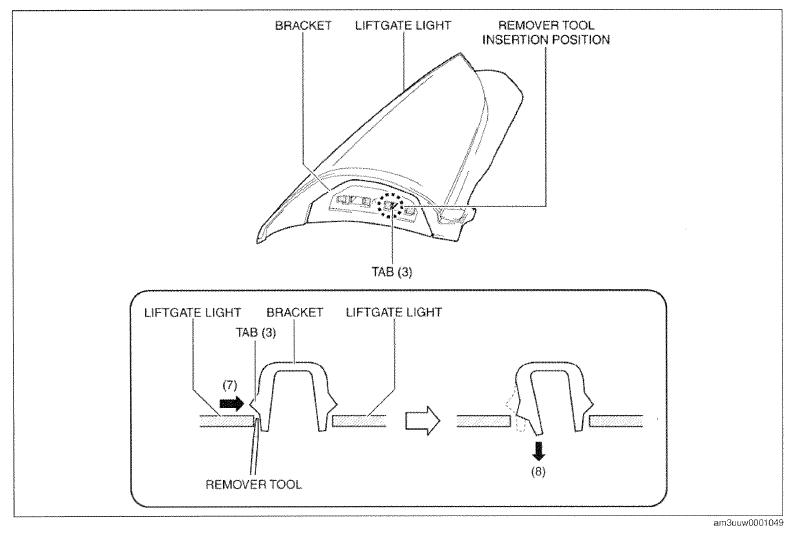

    Fig 6: Identifying Gap Between Tab (3) Of Bracket And Liftgate Light
    G09772516Courtesy of MAZDA MOTORS CORP.
  13. While pressing tab (3) of the bracket in the direction of arrow (7) shown in the figure using the remover tool, pull the bracket in the direction of arrow (8) to detach tab (3) of the bracket from the liftgate light.
  14. Insert the remover tool into the gap between tab (4) of the bracket and the liftgate light.

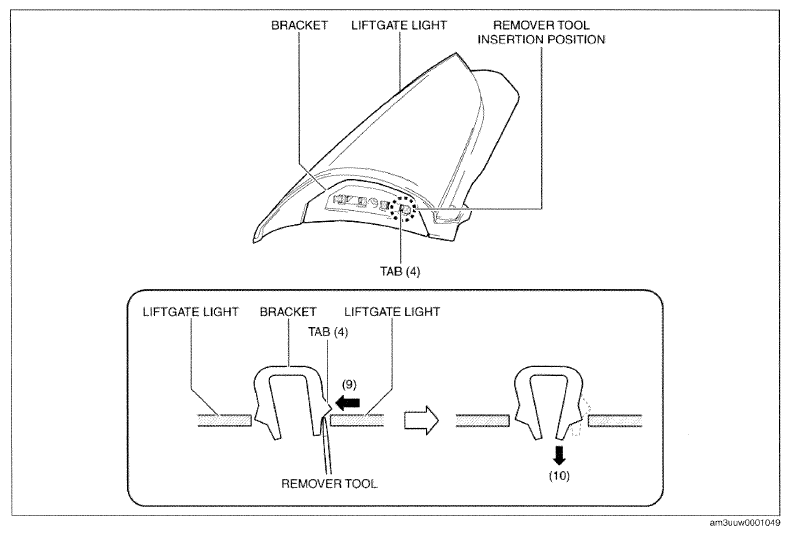

    Fig 7: Identifying Gap Between Tab (4) Of Bracket And Liftgate Light
    G09772517Courtesy of MAZDA MOTORS CORP.
  15. While pressing tab (4) of the bracket in the direction of arrow (9) shown in the figure using the remover tool, pull the bracket in the direction of arrow (10) to detach tab (4) of the bracket from the liftgate light.
  16. Detach all the tabs of the bracket from the liftgate light and remove the bracket from the liftgate light.
  17. To prevent scratches, apply protective tape to the position shown in the figure.
    CAUTION:
    • When removing the liftgate light from the liftgate, the liftgate light could contact the liftgate and damage it. Apply protective tape to the liftgate before removing the liftgate light from the liftgate.
    Fig 8: Identifying Liftgate Light And Protective Tape
    G09772518Courtesy of MAZDA MOTORS CORP.
  18. Move the liftgate light in the direction of the arrow shown in the figure and pull out the hook, guide, pins, and stud bolt from the liftgate.

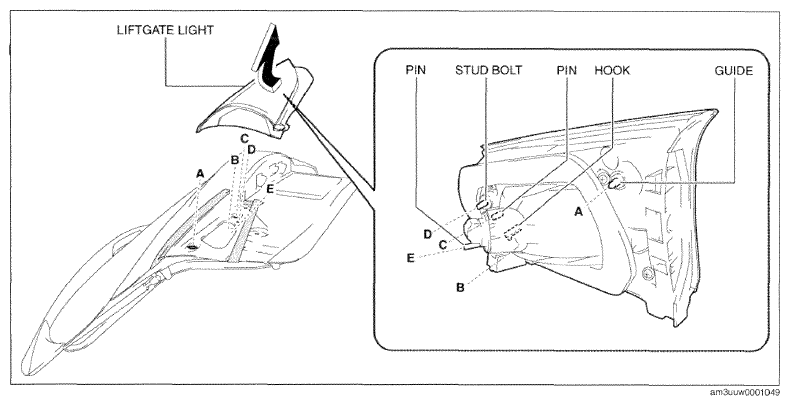

    Fig 9: Moving Liftgate Light
    G09772519Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When removing the liftgate light from the liftgate, the liftgate light may fall off and be damaged. Remove the liftgate light from the liftgate while holding the liftgate light on the lens side by hand.
  19. Remove the liftgate light.
  20. While pressing tabs of the grommet in the direction of arrow (11) shown in the figure, push out the grommet in the direction of arrow (12) to remove the grommet from the liftgate.

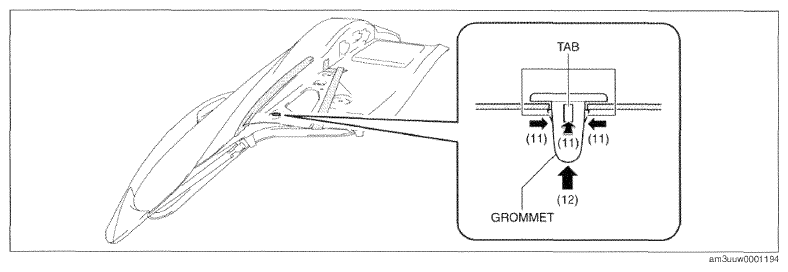

    Fig 10: Removing Grommet From Liftgate
    G09772520Courtesy of MAZDA MOTORS CORP.
  21. Install in the reverse order of removal.
