Door Lock Striker Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws, and then remove the door lock striker.
  2. Install in the reverse order of removal.
  3. Adjust the door. (See DOOR ADJUSTMENT .)

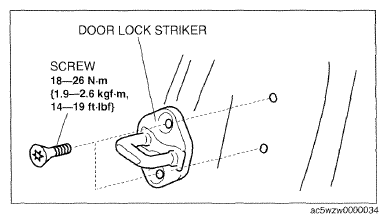

    Fig 1: Removing/Installing Door Lock Striker With Torque Specifications
    G09761431Courtesy of MAZDA MOTORS CORP.
