Air Bag System Location Index [Standard Deployment Control System]

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

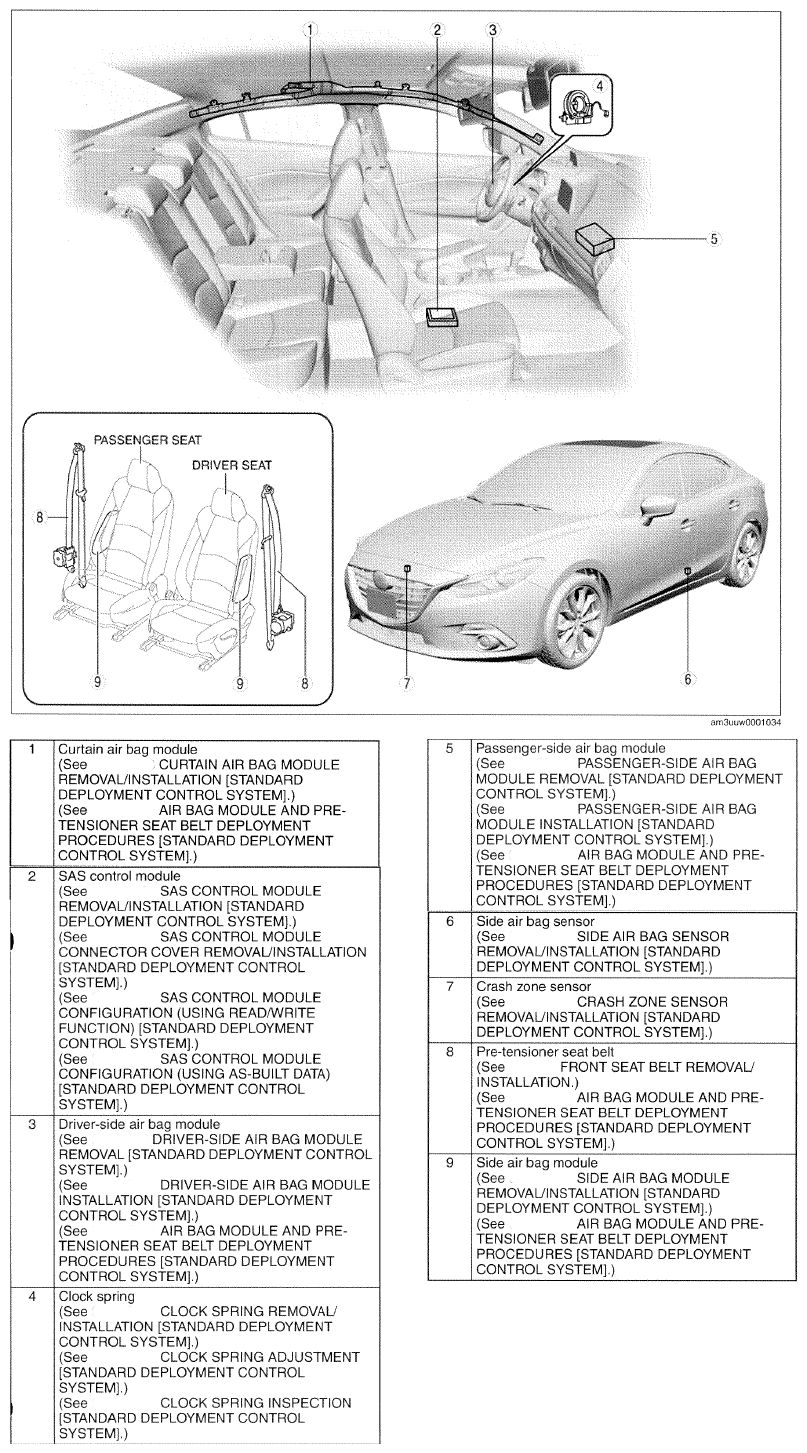

Fig 1: Air Bag System Components Location - Standard Deployment Control System
G09771588Courtesy of MAZDA MOTORS CORP.
