Active Air Shutter Location Index

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

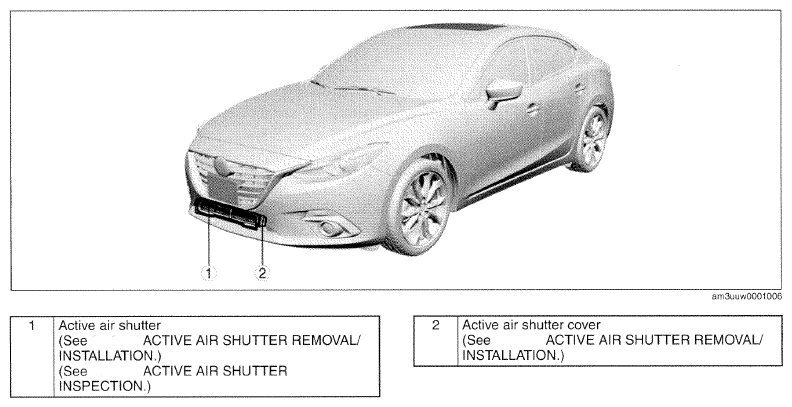

Fig 1: Active Air Shutter System Component Locations

Courtesy of MAZDA MOTORS CORP.
