Master Cylinder Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.
After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)

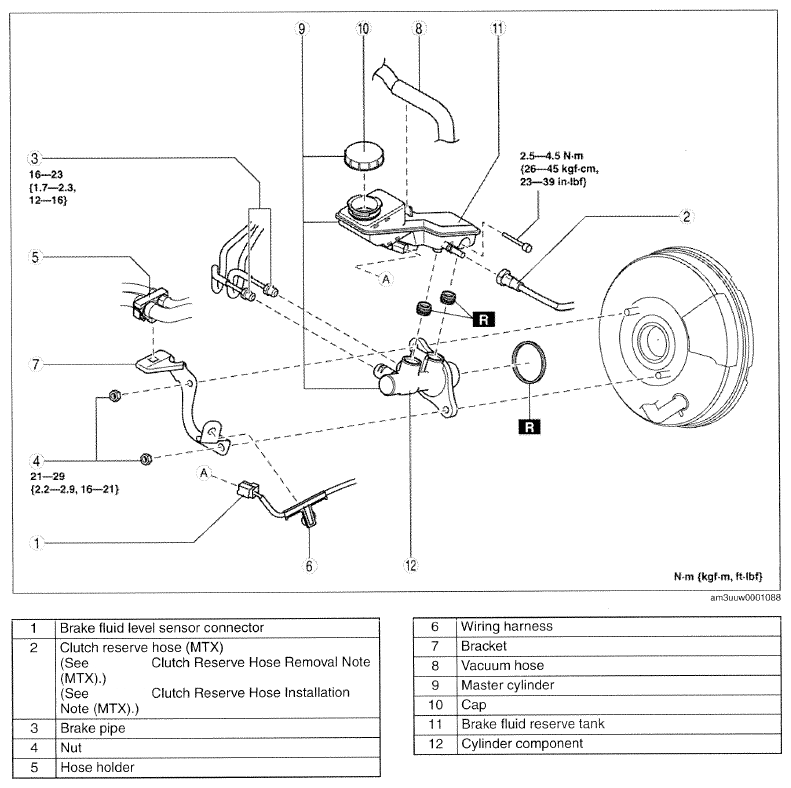

Fig 1: Master Cylinder Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.
