U.S.A. and CANADA Specs: AWD: Notes
- Level the vehicle.
- Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
- Drain the fuel. (See FUEL DRAINING PROCEDURE .)
- Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
- Remove the service hole cover.

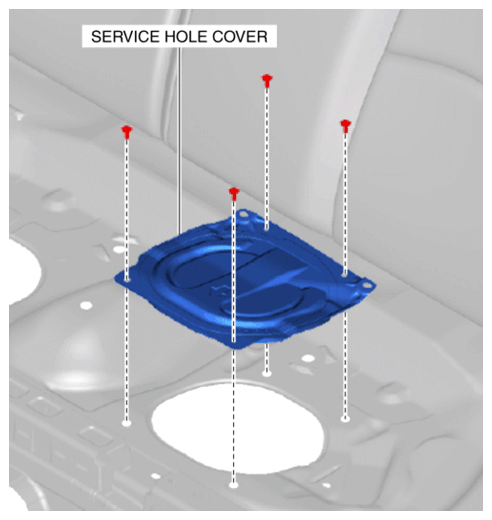

Main side

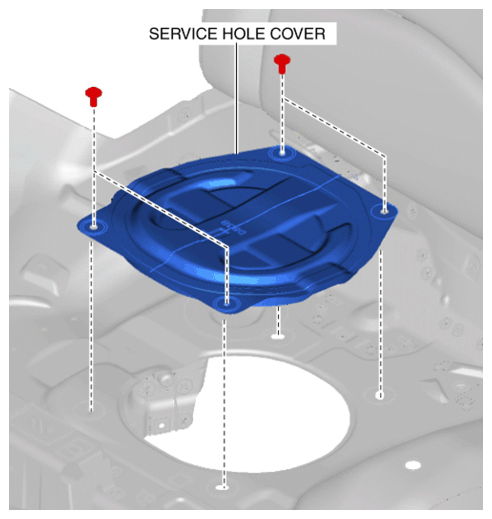

Sub side
- Disconnect the following parts:
Main side
- Fuel pump unit connector
- Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
Sub side
- Fuel gauge sender unit (sub) connector
- Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)

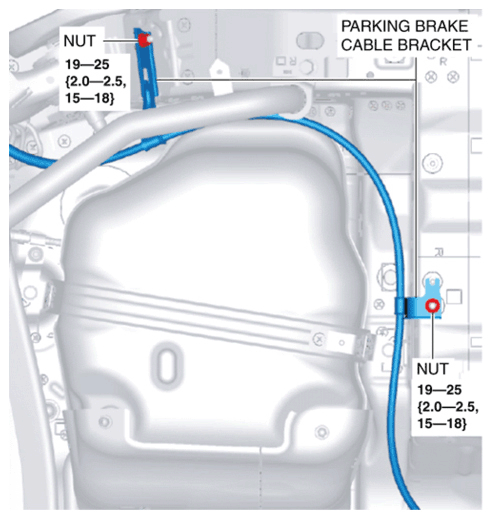

- Remove the parking brake cable bracket (RH) nuts shown in the figure and set the parking brake cable bracket aside in a location that does not interfere with the servicing.
- Remove the insulator. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
- Disconnect the HO2S connector.
- Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
- Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)

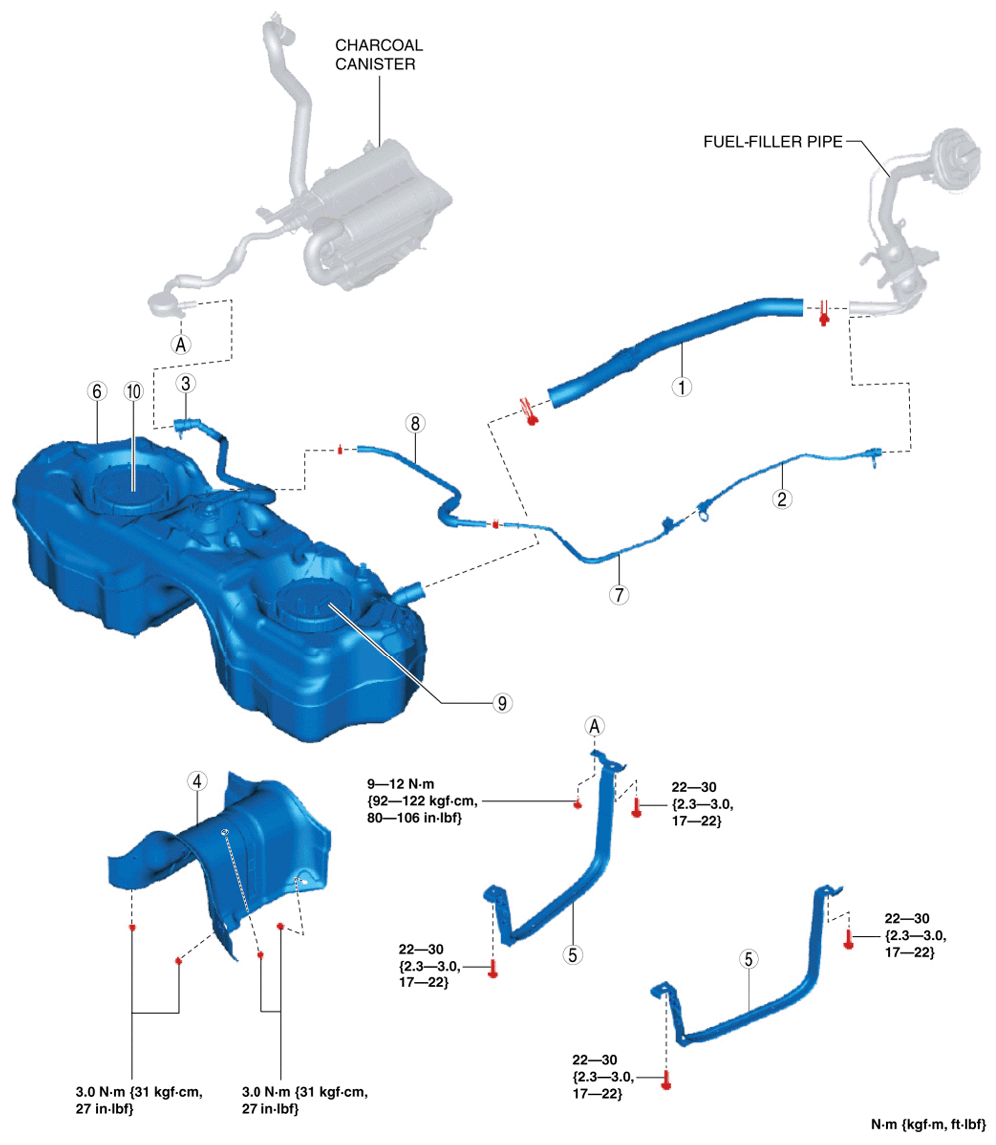

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
- Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)COMPONENT DESCRIPTION
1 Joint hose
(See JOINT HOSE INSTALLATION NOTE .)2 Breather hose No. 1
(See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)3 Quick release connector
(See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)4 Fuel tank insulator 5 Fuel tank strap 6 Fuel tank
(See FUEL TANK REMOVAL NOTE .)
(See FUEL TANK INSTALLATION NOTE .)7 Breather hose No. 2 8 Breather hose No. 3
(See BREATHER HOSE NO. 3 INSTALLATION NOTE .)9 Fuel pump unit
(See FUEL PUMP UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)10 Fuel gauge sender unit (sub)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [AWD] .)
