IGT1, IGT2, IGT3, IGT4 control

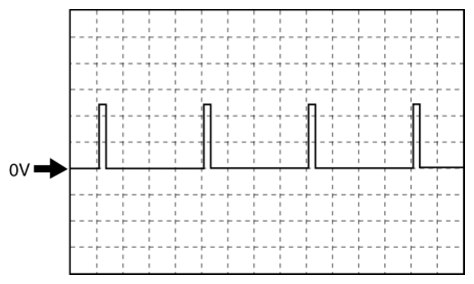

Fig 1: IGT Control Voltage Graph

G10969060

Courtesy of MAZDA MOTORS CORP.

PCM terminals

IGT1 (ignition coil No. 1): 1AY(+)-body ground(-)
IGT2 (ignition coil No. 2): 1AT(+)-body ground(-)
IGT3 (ignition coil No. 3): 1AO(+)-body ground(-)
IGT4 (ignition coil No. 4): 1AJ(+)-body ground(-)

Oscilloscope setting

2 V/DIV (Y), 50 ms/DIV (X), DC range

Vehicle condition

Idle after warm up
