Engine Compartment Side

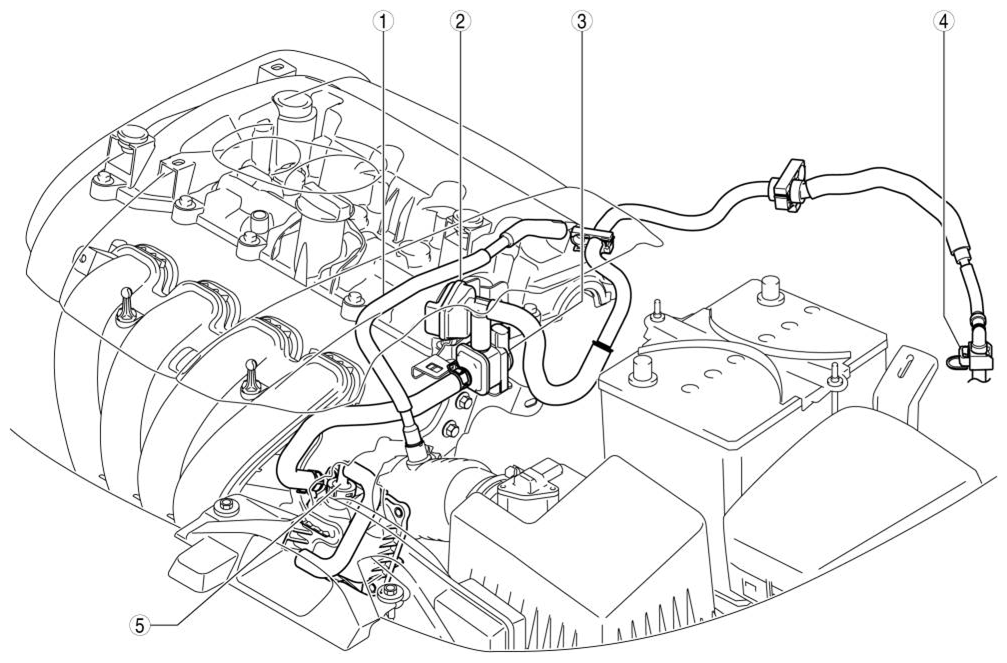

Fig 1: Emission System Components (Engine Compartment Side)
G10968927Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Ventilation hose
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
2 Catch tank
(See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
(See CATCH TANK INSPECTION .)
3 Purge solenoid valve
(See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
(See PURGE SOLENOID VALVE INSPECTION .)
4 Quick release connector
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION. )
5 PCV valve
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION .)
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION .)
