Stator coil

Verify that the continuity is as indicated in the figure.

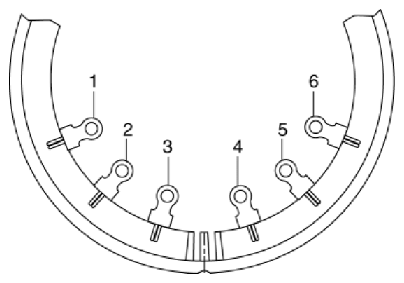

Fig 1: Identifying Stator Coil Terminals
Courtesy of MAZDA MOTORS CORP.

Fig 2: Stator Coil Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the stator coil.

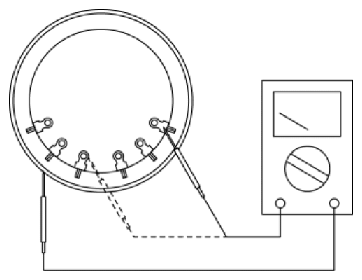

Verify that there is no continuity between the stator coil leads and core using a ohmmeter.

Fig 3: Checking Continuity Between Stator Coil Leads And Core Using Ohmmeter
Courtesy of MAZDA MOTORS CORP.
- If there is continuity, replace the stator coil.
