Power Window SUBSWITCH Removal/Installation: Passenger-side

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Affix the protective tape to the position shown in the figure to prevent scratches and damage.

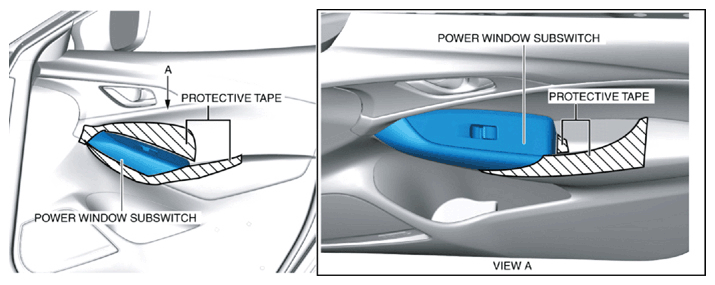

Fig 1: Applying Protective Tape To Power Window Main Switch
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When detaching the tabs, move the remover tool gradually. If the remover tool is moved too extensively, the welded area of the power window subswitch panel could be damaged.

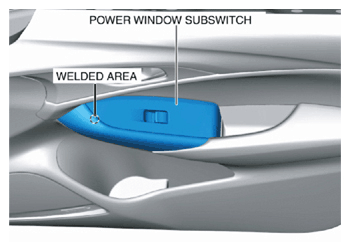

  Fig 2: Identifying Welded Area Of Power Window Subswitch
  Courtesy of MAZDA MOTORS CORP.

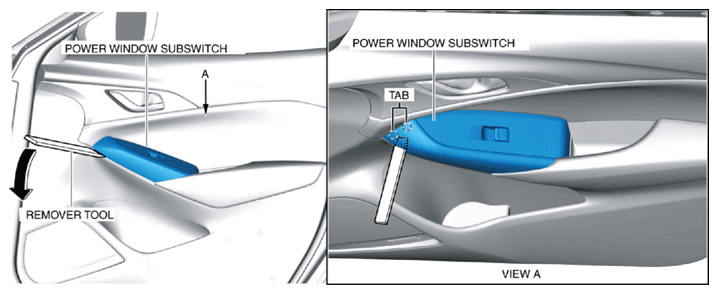

Insert the remover tool into the position shown in the figure.

Fig 3: Inserting Remover Tool Into Power Window Subswitch
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the figure and detach the tabs.
While pulling the power window subswitch in the direction of arrow (1) shown in the figure, press the front door trim in the direction of arrows (2) and detach the tabs.

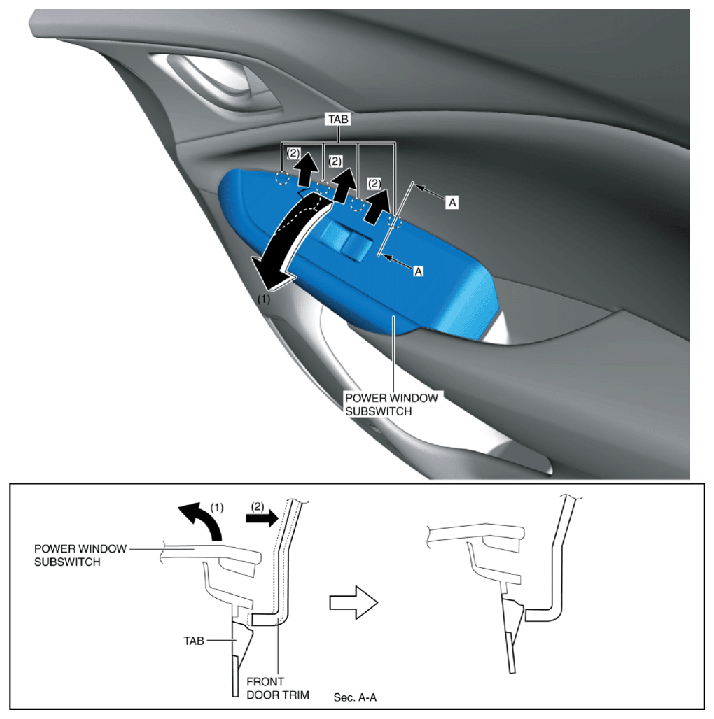

Fig 4: Pulling Power Window Subswitch
Courtesy of MAZDA MOTORS CORP.

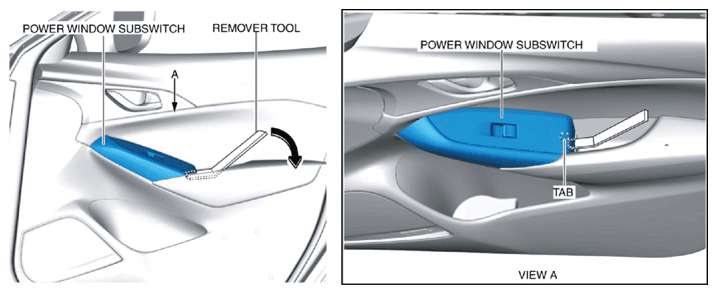

Insert the remover tool into the position shown in the figure.

Fig 5: Inserting Remover Tool Into Power Window Subswitch
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the figure and detach the tabs.

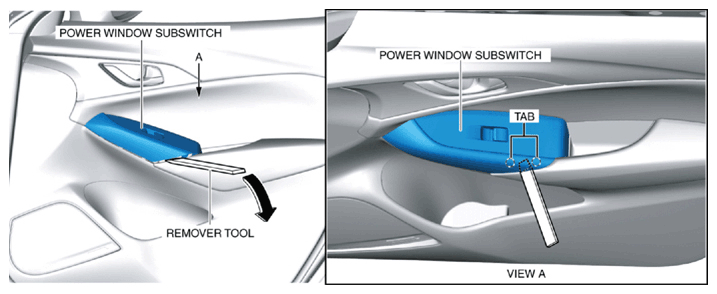

Insert the remover tool into the position shown in the figure.

Fig 6: Removing Power Window Main Subswitch Tabs
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the figure and detach the tabs.

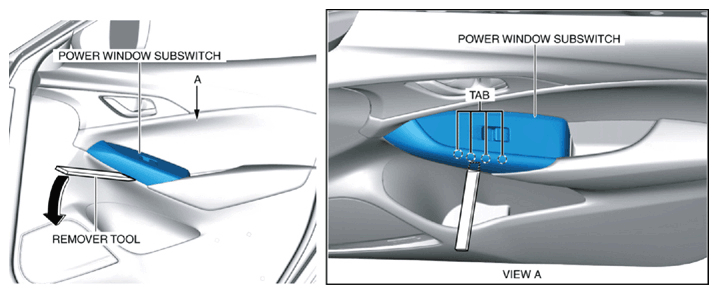

Insert the remover tool into the position shown in the figure.

Fig 7: Inserting Remover Tool Into Power Window Subswitch
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the figure and detach the tab.
Disconnect the connector.

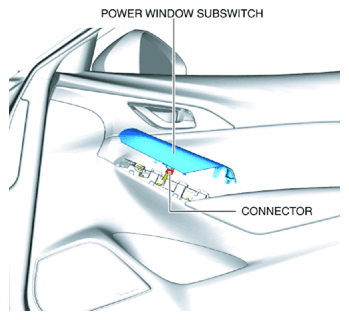

Fig 8: Identifying Power Window Subswitch And Connector
Courtesy of MAZDA MOTORS CORP.
Detach the tabs and remove the power window subswitch from the power window subswitch panel.

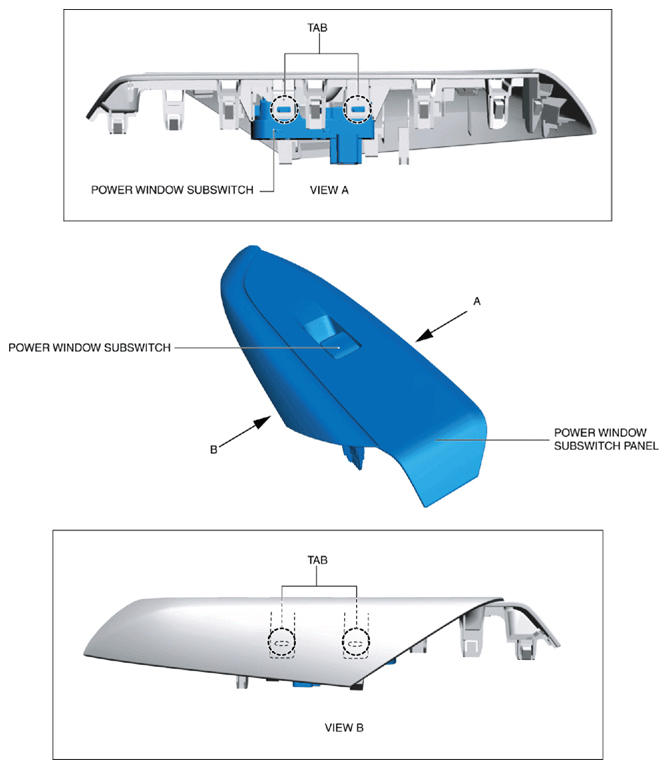

Fig 9: Identifying Power Window Subswitch, Power Window Subswitch Panel Tabs
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
