Side Turn Light Removal/Installation
WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
- Remove the upper outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)

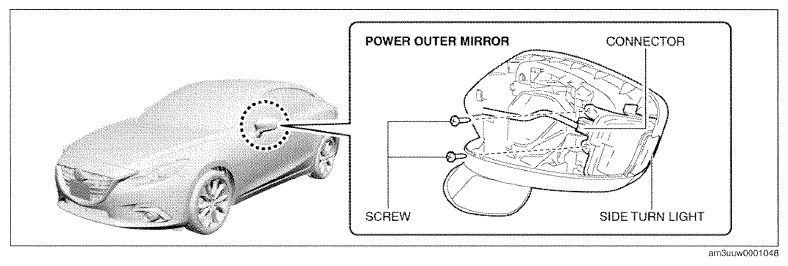

- Remove the screws.
- Remove the side turn light.
- Disconnect the connector.
- Install in the reverse order of removal.
