Igniter Installation Note (With AFS)

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the igniter is installed in the wrong direction, the igniter may contact the housing when the AFS operates, causing the AFS not to operate normally. After installing the igniter to the position shown in the figure, verify that the igniter does not contact the housing.

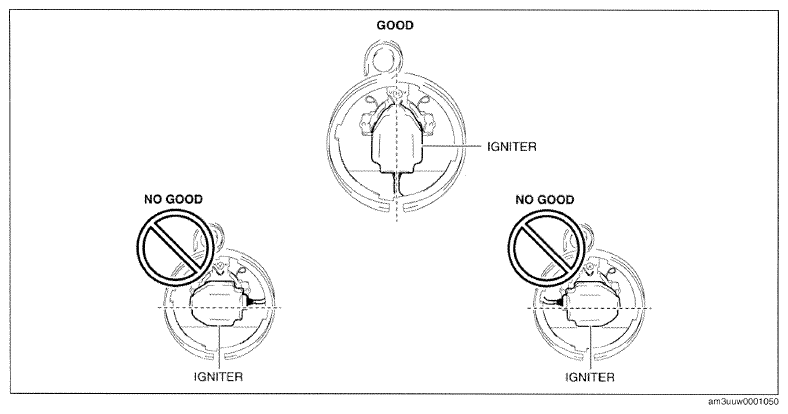

Fig 1: Precaution For Igniter Proper And Improper Position

Courtesy of MAZDA MOTORS CORP.
