High-Mount Brake Light Removal/Installation: 4SD

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing the high-mount brake light, the procedure can be facilitated by folding down the rear seat.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Insert the remover tool in the gap between the high-mount brake light cover and the rear package trim. HIGH-MOUNT BRAKE LIGHT COVER

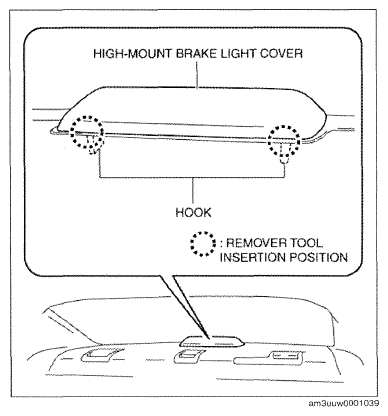

Fig 1: Inserting Remover Tool In Gap Between High-Mount Brake Light Cover And Rear Package Trim
Courtesy of MAZDA MOTORS CORP.
While pressing the hook in the direction of arrow (1) shown in the figure, lift up the high-mount brake light cover in the direction of arrow (2) shown in the figure and pull out the hook from the rear package trim.

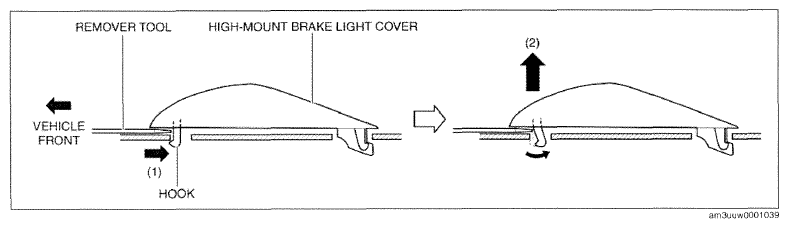

Fig 2: Pulling Out Hook From Rear Package Trim
Courtesy of MAZDA MOTORS CORP.
Move the high-mount brake light cover in the direction of arrow (3) shown in the figure and pull out the guide from the rear package trim.

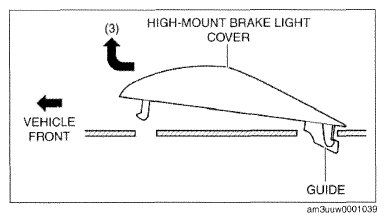

Fig 3: Pulling Out Guide From Rear Package Trim
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

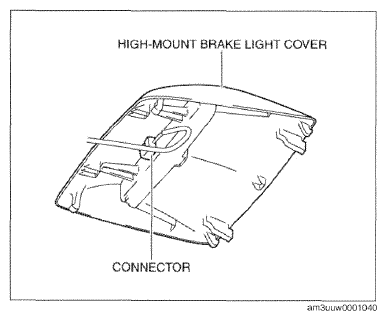

Fig 4: Identifying Connector And High-Mount Brake Light Cover
Courtesy of MAZDA MOTORS CORP.
Move the high-mount brake light in the direction of arrows (4) shown in the figure and disconnect the tabs of the high-mount brake light cover from the high-mount brake light.
Remove the high-mount brake light.
Install in the reverse order of removal.

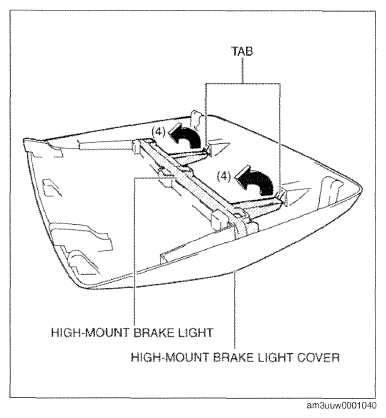

Fig 5: Disconnecting Tabs Of High-Mount Brake Light Cover From High-Mount Brake Light
Courtesy of MAZDA MOTORS CORP.
