Continuity Inspection

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
Verify that the continuity between the hazard warning switch terminals is as indicated in the table.

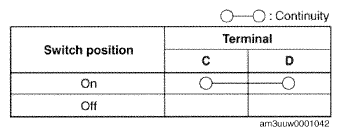

Fig 1: Hazard Warning Switch Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Hazard Warning Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .)
