Front Turn Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
Disconnect the connector.
Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

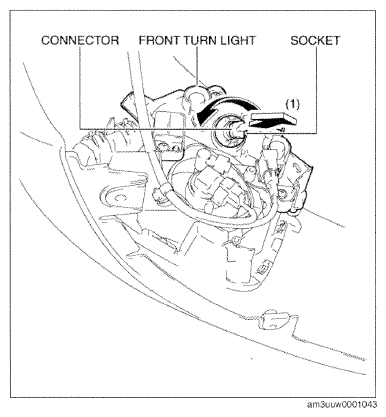

Fig 1: Disconnecting Connector Of Front Turn Light Bulb
Courtesy of MAZDA MOTORS CORP.
Remove the front turn light bulb.
CAUTION:
- The bulb reaches high temperatures when illuminated. If there Is oil or dirt on the surface of the bulb, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.
Install in the reverse order of removal.

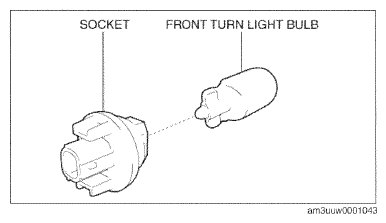

Fig 2: Removing Front Turn Light Bulb
Courtesy of MAZDA MOTORS CORP.
