Front Fog Light Bulb Removal/Installation
WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Partially peel back front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
- Disconnect the connector.

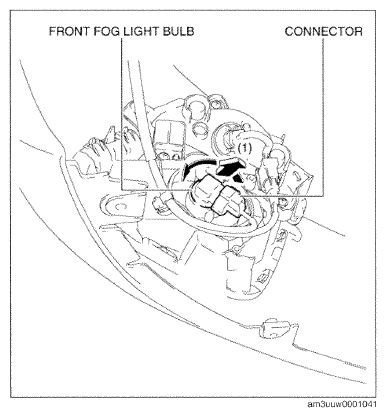

- Turn the front fog light bulb counterclockwise and remove it in the direction of arrow (1) shown in the figure.CAUTION:
- The bulb reaches high temperatures when illuminated, if there is oil or dirt on the surface of the bulb, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.
- Install in the reverse order of removal.
