Cargo Compartment Light Inspection

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the cargo compartment light. (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the cargo compartment light terminals is as indicated in the table.

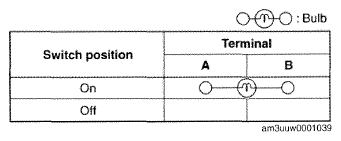

Fig 1: Cargo Compartment Light Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Cargo Compartment Light Connector Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the cargo compartment light bulb or the cargo compartment light. (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .) (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
