Drain Hose Installation Note

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the clip as shown in the figure.

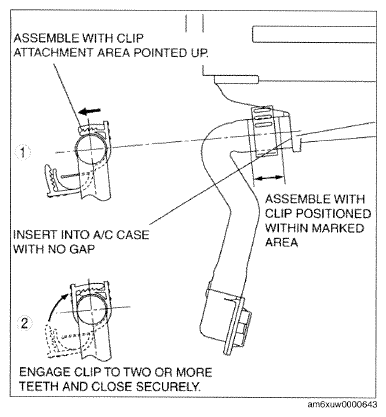

Fig 1: Installing A/C Unit Drain Hose
Courtesy of MAZDA MOTORS CORP.
