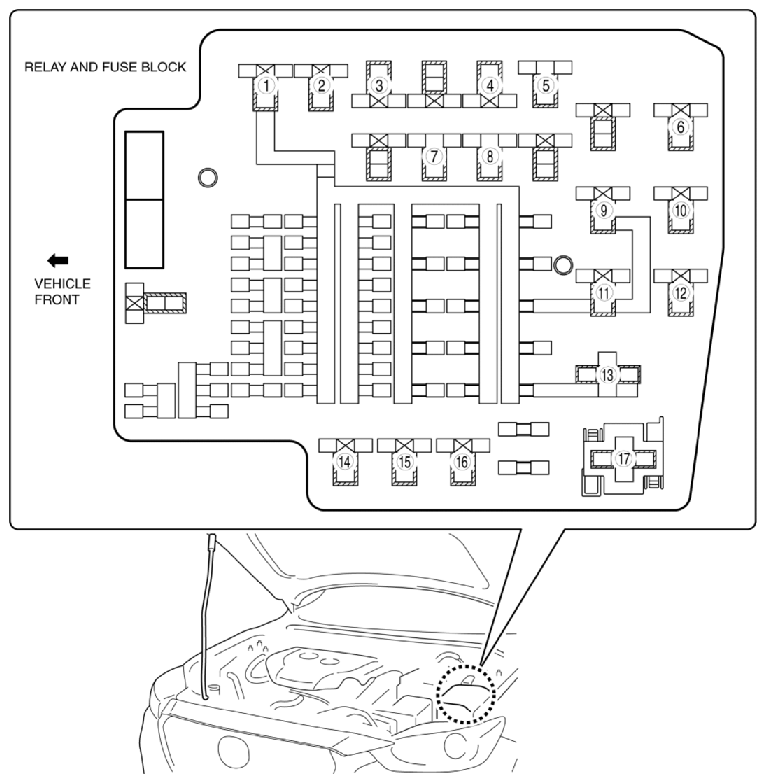

Relay Location
ENGINE ROOM RELAY BOX RELAY IDENTIFICATION
| Relay Number | Relay Description |
|---|---|
| 1 | IG1 relay |
| 2 | A/C relay |
| 3 | Front fog light relay |
| 4 | Theft-deterrent relay |
| 5 | Brake light relay |
| 6 | Horn relay |
| 7 | Wiper INT relay |
| 8 | Wiper HI relay |
| 9 | Starter relay |
| 10 | Electric variable valve timing relay |
| 11 | ACC relay |
| 12 | Rear window defogger relay |
| 13 | Blower relay |
| 14 | Fuel pump relay |
| 15 | Fuel injector relay |
| 16 | Main relay |
| 17 | Cooling fan relay |
