Manual Transaxle Shift Mechanism Location Index

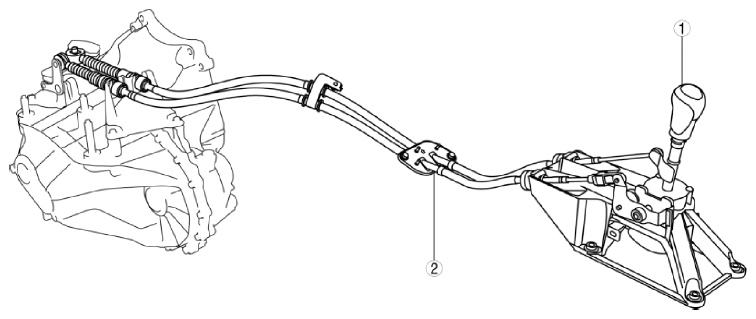

Fig 1: Shift Lever And Control Cable

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Shift lever (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
2	Control cable (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
