Drive Plate Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

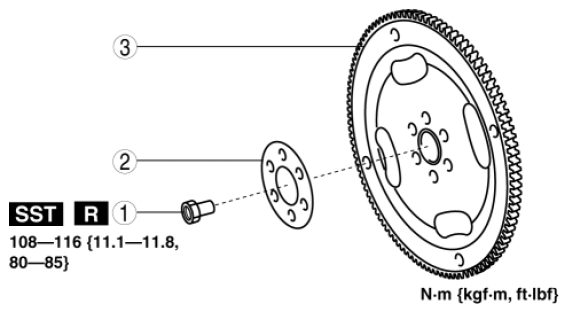

    Fig 1: Identifying Drive Plate Bolts With Torque Specifications
    G10986326Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Drive plate installation bolts
    (See Drive Plate Installation Bolts Removal Note .)
    (See Drive Plate Installation Bolts Installation Note .)
    2 Backing plate
    3 Drive plate
  3. Install in the reverse order of removal.
