Rear Turn Light Bulb Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

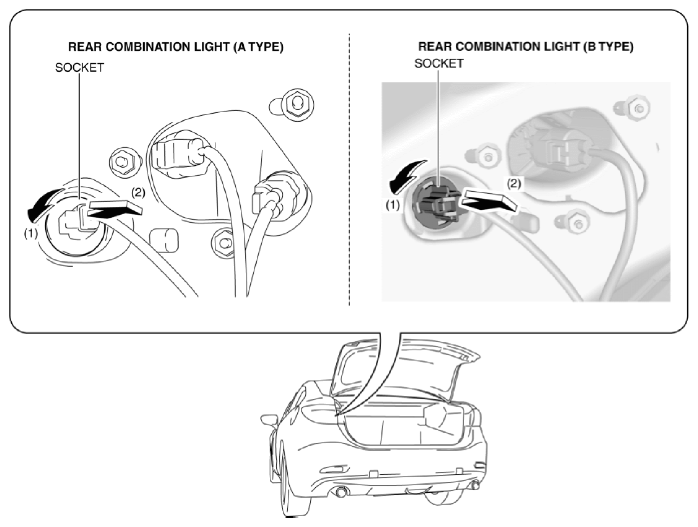

  4. Rotate the socket in the direction of the arrow (1) shown in the figure and remove it from the rear combination light in the direction of the arrow (2) shown in the figure.
    Fig 1: Rotating Socket
    G10987963Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear turn light bulb.
    Fig 2: Removing Rear Turn Light Bulb
    G10987964Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
