Shift Panel Removal/Installation: MTX

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    3. Shift lever knob (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
  3. Remove the shift panel in the direction of the arrows in the order of (1), (2) while detaching hooks.

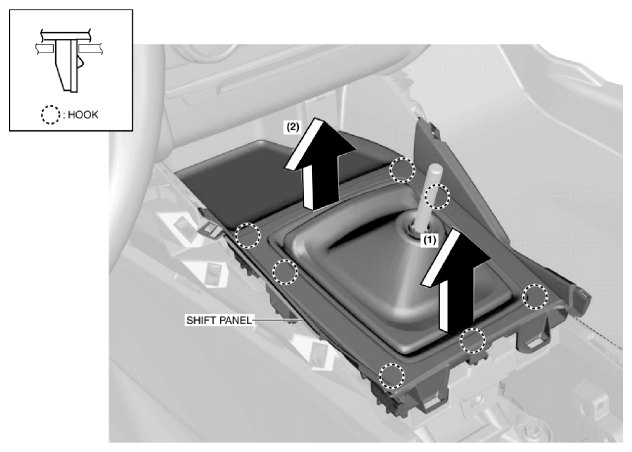

    Fig 1: Removing Shift Panel (MTX)
    G11011972Courtesy of MAZDA MOTORS CORP.
  4. Remove the shift panel in the direction of the arrow shown in the figure, while detaching guides.

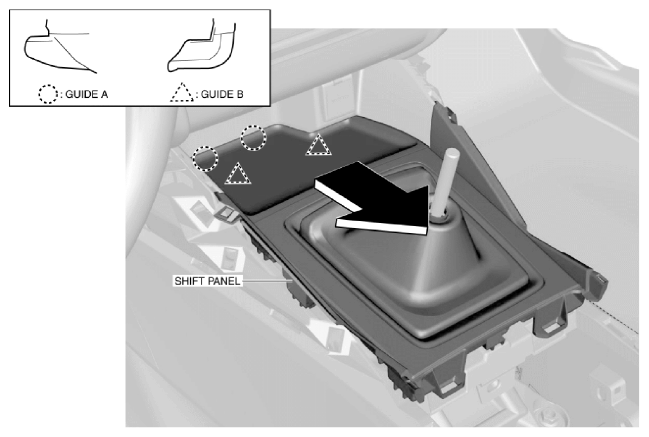

    Fig 2: Detaching Guides From Shift Panel
    G11011973Courtesy of MAZDA MOTORS CORP.
  5. While pressing the tab in the directions of arrows (1) shown in the figure, press it up in the direction of arrow (2) and detach the tabs from the shift panel.

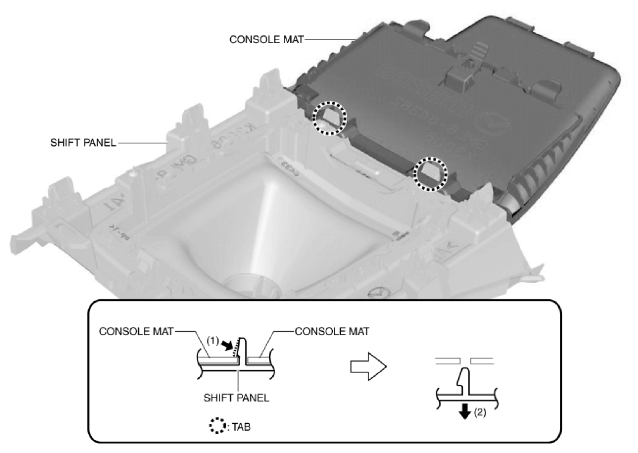

    Fig 3: Detaching Tabs From Shift Panel
    G11011974Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
