Assist Handle Removal/Installation: Removal

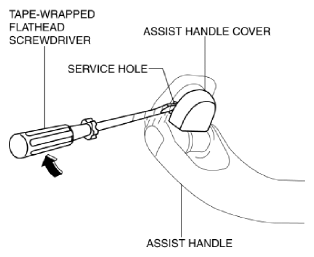

1. Insert a tape-wrapped flathead screwdriver into the service hole and remove the assist handle covers.
   Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Into Service Hole Of Assist Handle Covers

   Courtesy of MAZDA MOTORS CORP.

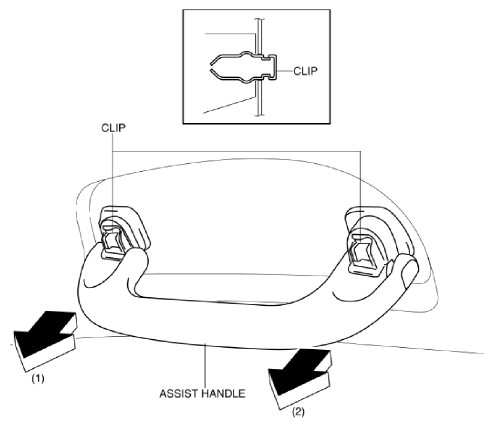

2. Remove the assist handle in the direction of the arrow (1) and (2), while detaching the clips.

Fig 2: Removing Assist Handle Covers

Courtesy of MAZDA MOTORS CORP.

NOTE:

• Remove the assist handle by shaking it up and down.
