Short-cord Assembly Note
Short-cord Assembly Note
When assembling the short-cord, press it into the groove of the CMU.

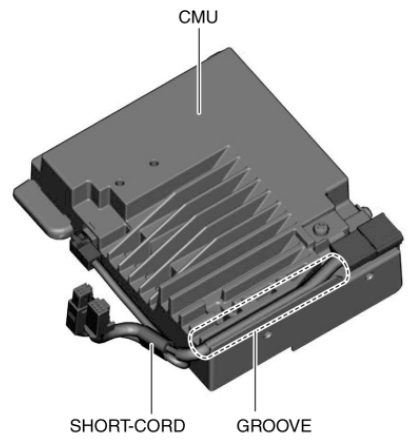

Fig 1: Identifying CMU, Short Cord And Groove
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
