Automatic Transaxle Control System Wiring Diagram

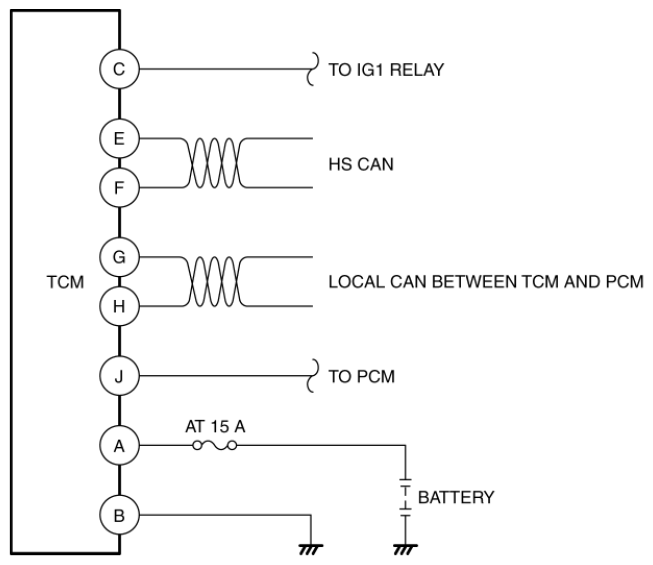

Fig 1: FW6A-EL Automatic Transaxle Control System Wiring Diagram

G10986060

Courtesy of MAZDA MOTORS CORP.
