Glove Compartment Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Open the glove compartment.
  3. Remove the glove compartment light bulb.
  4. Install in the reverse order of removal.

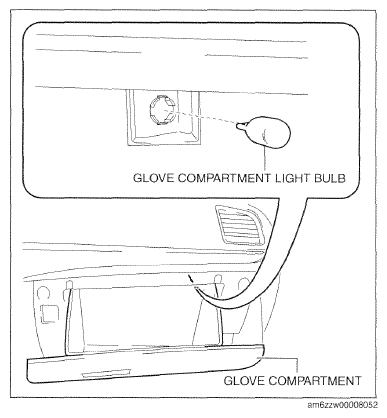

    Fig 1: Removing Glove Compartment Light Bulb
    G09788240Courtesy of MAZDA MOTORS CORP.
