Trunk Lid Recess Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Using a tape-wrapped flathead screwdriver, push hooks A in the direction of the arrow (1) shown in the figure and remove it.

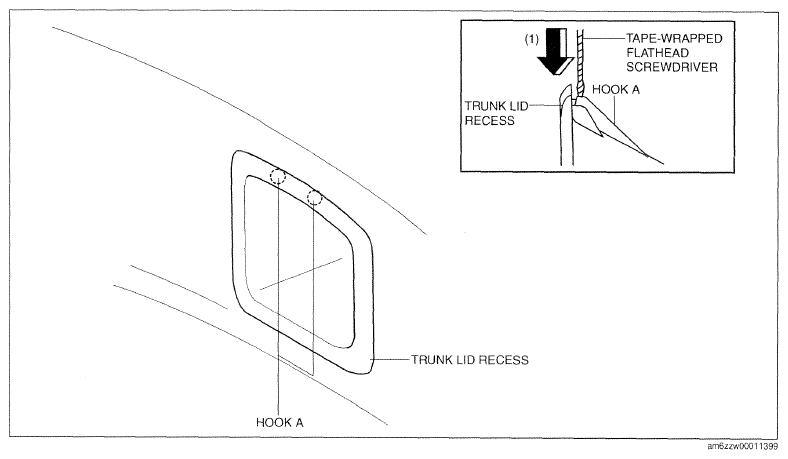

Fig 1: Trunk Lid Recess Hook
Courtesy of MAZDA MOTORS CORP.
Remove the trunk lid recess in the direction of the arrow (2) shown in the figure avoiding hooks B.

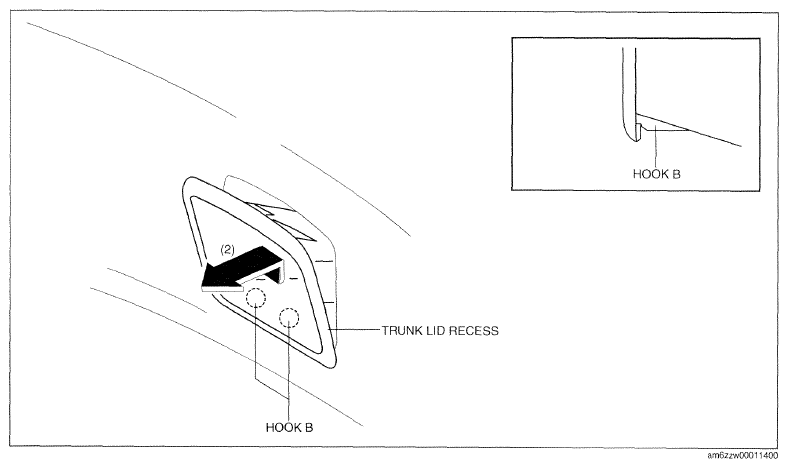

Fig 2: Trunk Lid Recess
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
