Shift Panel Removal/Installation: MTX

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Shift lever knob (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)

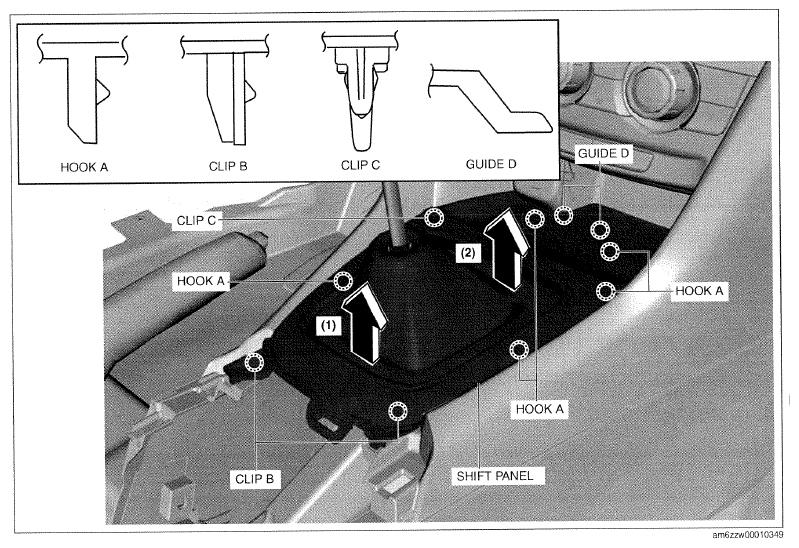

  3. Remove the shift panel in the direction of the arrows in the order of (1), (2) while detaching hooks A, clips B, clips C, and guides D.
    Fig 1: Removing Shift Panel
    G09788006Courtesy of MAZDA MOTORS CORP.

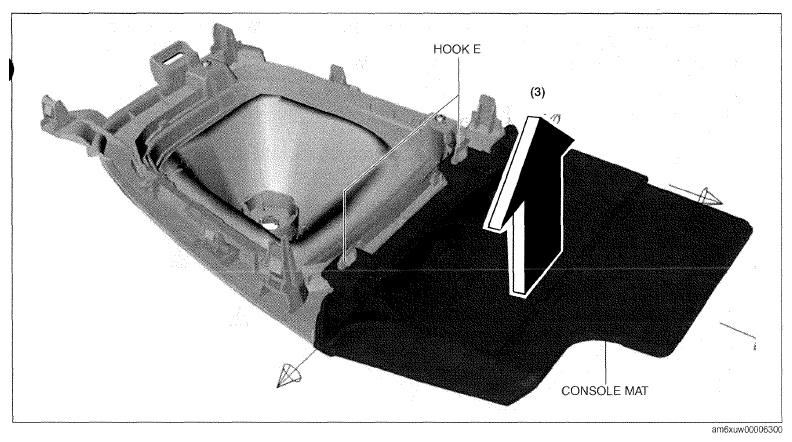

  4. Remove the console mat in the direction of the arrow (3) shown in the figure, while detaching hooks E.
    Fig 2: Removing Console Mat
    G09788007Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
