Shift Panel Removal/Installation: ATX

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  3. Remove clip A.

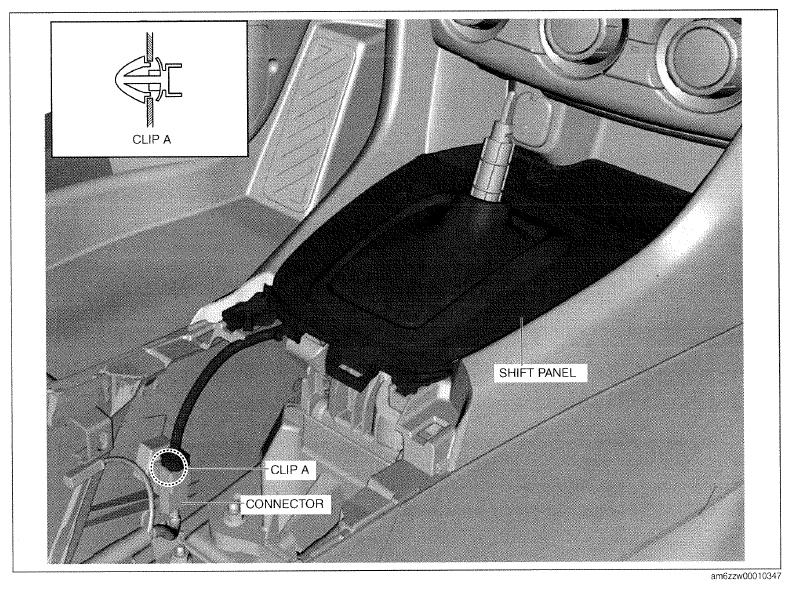

    Fig 1: Identifying Shift Panel And Connector
    G09788003Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the shift panel in the direction of the arrows in the order of (1), (2) while detaching hooks B, clips C, clips D, and guides E.

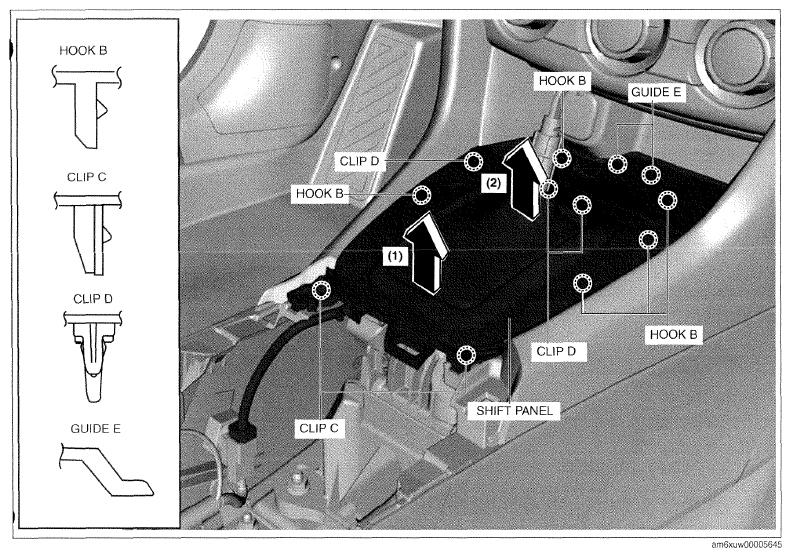

    Fig 2: Removing Shift Panel
    G09788004Courtesy of MAZDA MOTORS CORP.
  6. Remove the console mat in the direction of the arrow (3) shown in the figure, while detaching hooks F.

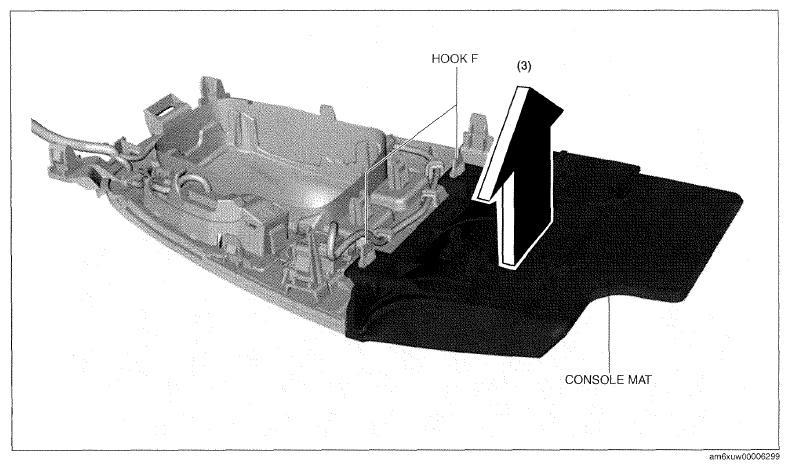

    Fig 3: Removing Console Mat
    G09788005Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
