Floor Covering Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    2. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .)
    3. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    7. Lower anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    8. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    9. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    10. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    11. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    12. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    13. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    14. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    15. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    16. Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    17. Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    18. Parking brake lever (See PARKING BRAKE LEVER REMOVAL/INSTALLATION .)
    19. SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
    20. Front seat (See FRONT SEAT REMOVAL/INSTALLATION .)
    21. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  3. Disconnect the dashboard harness connectors.
  4. Remove the clips A shown in the figure.

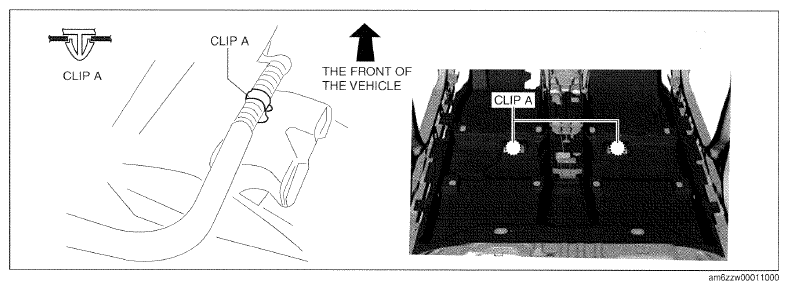

    Fig 1: Identifying Floor Covering Mounting Clips
    G09788073Courtesy of MAZDA MOTORS CORP.
  5. Remove nuts A.

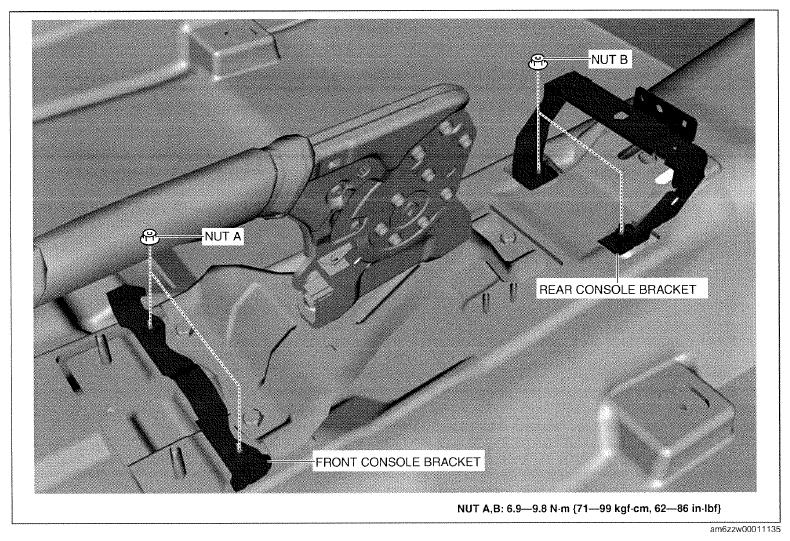

    Fig 2: Rear Console Bracket And Mounting Bolts With Torque Specifications
    G09788074Courtesy of MAZDA MOTORS CORP.
  6. Remove the front console bracket.
  7. Remove nuts B.
  8. Remove the rear console bracket.
  9. Remove the fasteners.

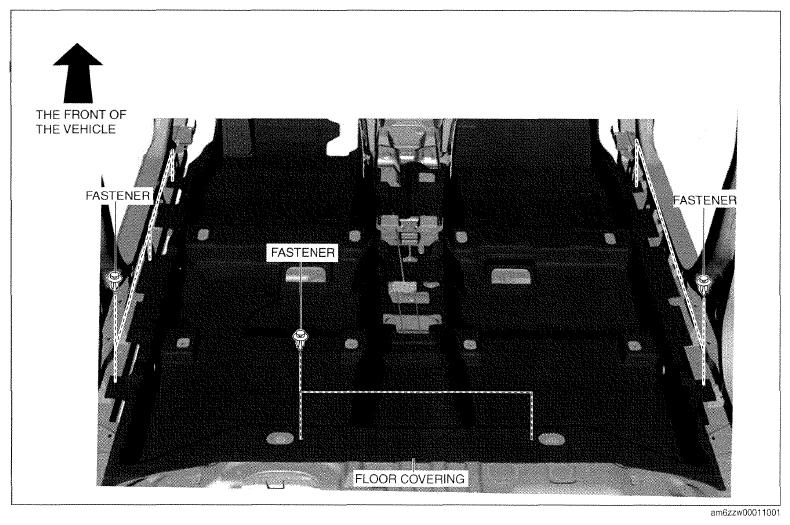

    Fig 3: Identifying Floor Covering Fasteners
    G09788075Courtesy of MAZDA MOTORS CORP.
  10. Take the floor covering out from the door opening.
  11. Install in the reverse order of removal. (See FLOOR COVERING INSTALLATION NOTE .)
