Drive-by-wire control (+) signal

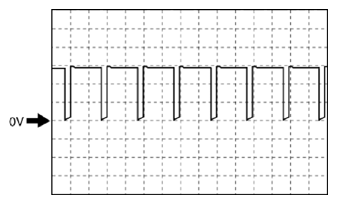

Fig 1: Drive-By-Wire Control (+) Signal Waveform

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1CG(+)-body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
