Fresh-air Duct Removal Note
Fresh-air Duct Removal Note
Pull out the fresh-air duct while pressing the tab shown in the figure.

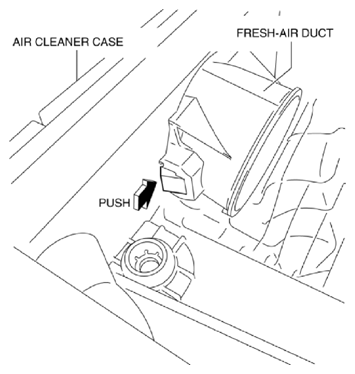

Fig 1: Pulling Out Fresh-Air Duct
Courtesy of MAZDA MOTORS CORP.
