Exhaust System Insulator Removal/Installation

  1. Remove the exhaust system insulator in the order shown in the figure.
  2. Install in the reverse order of removal.

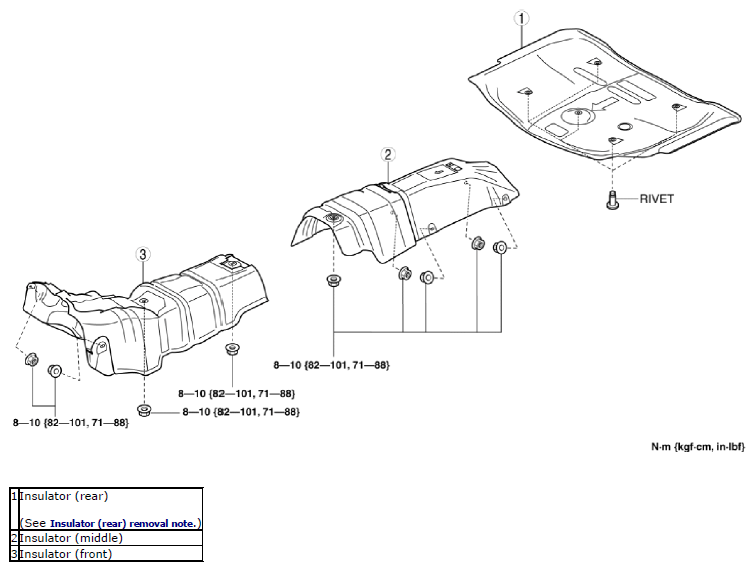

    Fig 1: Identifying Exhaust System Insulator Components With Torque Specification
    G10985443Courtesy of MAZDA MOTORS CORP.
