Exhaust Manifold Insulator Installation Note

1. Temporarily tighten the exhaust manifold insulator.
2. Tighten the exhaust manifold insulator in the order shown in the figure.

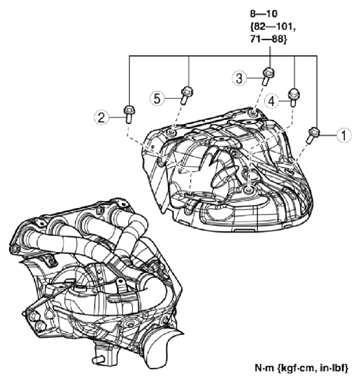

Fig 1: Exhaust Manifold Insulator Tightening Order

Courtesy of MAZDA MOTORS CORP.

Exhaust manifold insulator (upper) tightening torque

• 8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
