Urethane attachment

  1. Attach urethane to the position shown in the figure using the projection as a reference.

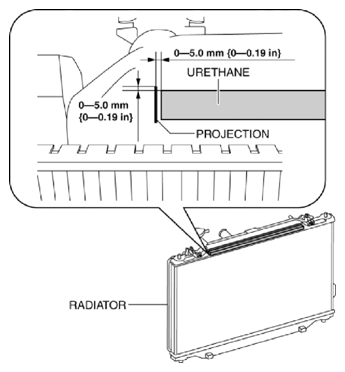

Fig 1: Attaching Urethane To Position Using Projection Reference
G10985334Courtesy of MAZDA MOTORS CORP.
