Magnetic switch

  1. Inspect for continuity between terminals S and M using a tester.

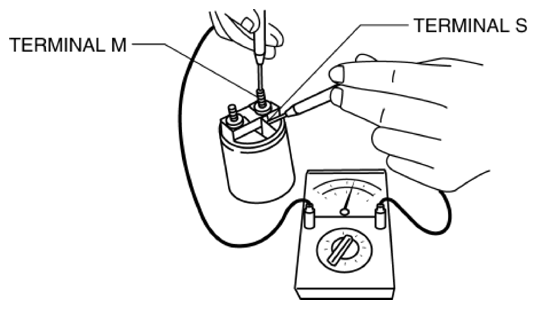

    Fig 1: Inspecting Continuity Between Magnetic Switch Terminals S And M Using Tester
    G10985548Courtesy of MAZDA MOTORS CORP.
    • If there is no continuity, replace the magnetic switch.
  2. Inspect for continuity between terminal S and the body using a tester.

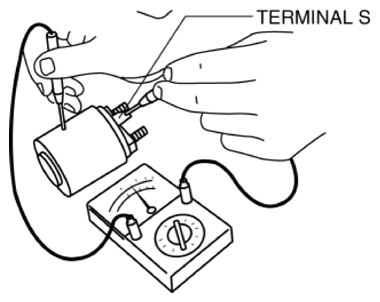

    Fig 2: Inspecting Continuity Between Terminal S And Body Using Tester
    G10985549Courtesy of MAZDA MOTORS CORP.
    • If there is no continuity, replace the magnetic switch.
  3. Verify that there is no continuity between terminals M and B using a tester.

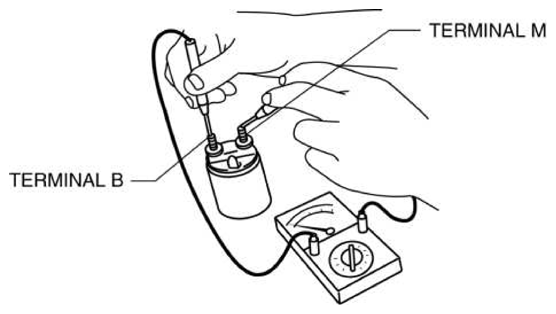

    Fig 3: Checking Continuity Between Terminals M And B Using Tester
    G10985550Courtesy of MAZDA MOTORS CORP.
    • If there is continuity, replace the magnetic switch.
