Charging System Location Index

NOTE:

For location index of the generator, DC-DC converter (i-ELOOP), capacitor (i-ELOOP) on vehicles with i-ELOOP, refer to the i-ELOOP section. (See CHARGING SYSTEM LOCATION INDEX [I-ELOOP] .)

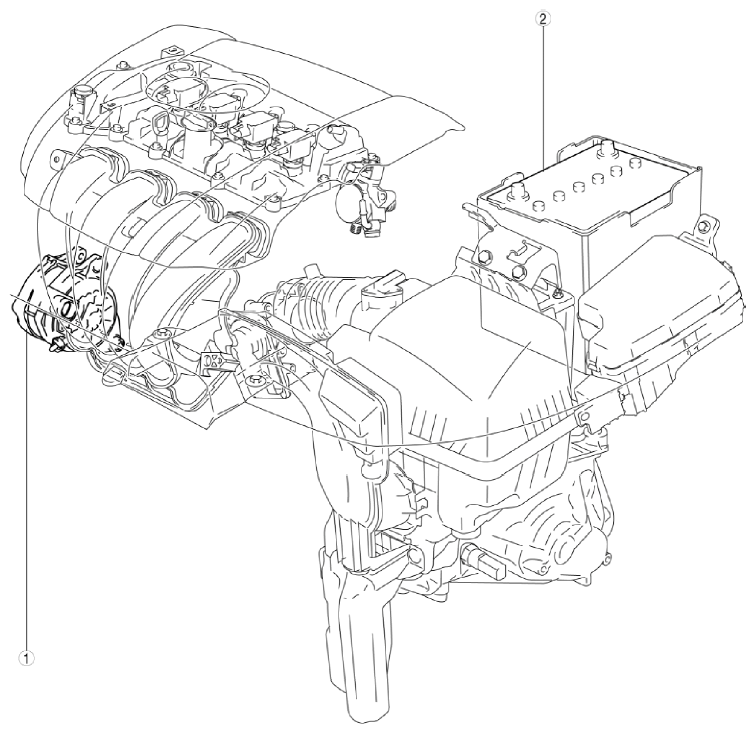

Fig 1: Charging System Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Generator (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITHOUT i-ELOOP)] .) (See GENERATOR INSPECTION [SKYACTIV-G 2.5 (WITHOUT i-ELOOP)] .) (See GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5 (WITHOUT i-ELOOP)] .)
2	Battery (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .) (See BATTERY REMOVAL/INSTALLATION .) (See BATTERY INSPECTION .) (See BATTERY RECHARGING .)
