Symptom Troubleshooting - Power Window Systems
>>
Power Window System Wiring Diagram
Power Window System Wiring Diagram
Power window main switch

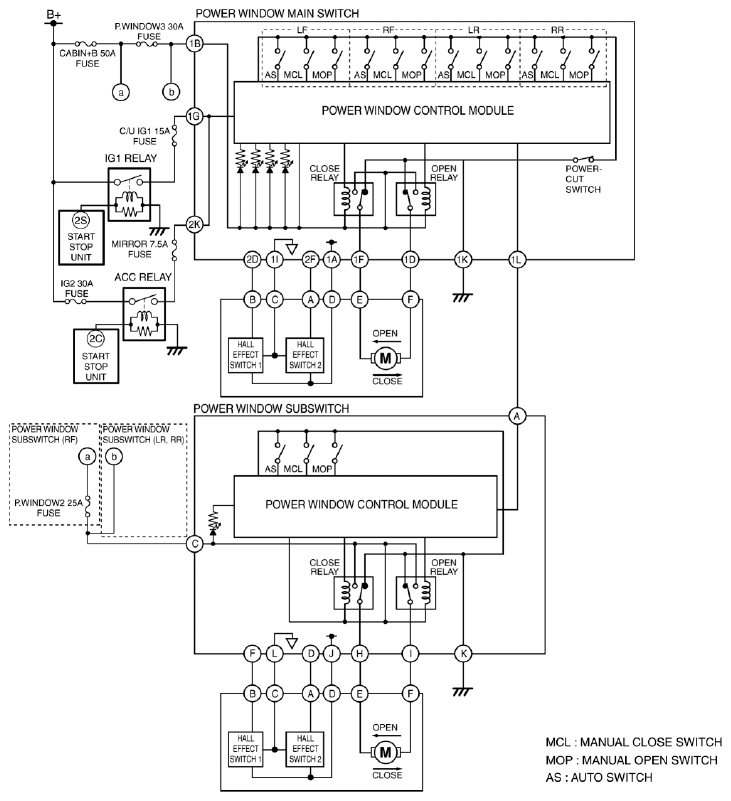

Fig 1: Power Window System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
