Side Turn Light Inspection

Remove the side turn light. (See SIDE TURN LIGHT REMOVAL/INSTALLATION .)
Apply battery voltage to side turn light terminal A, and connect terminal B to ground.

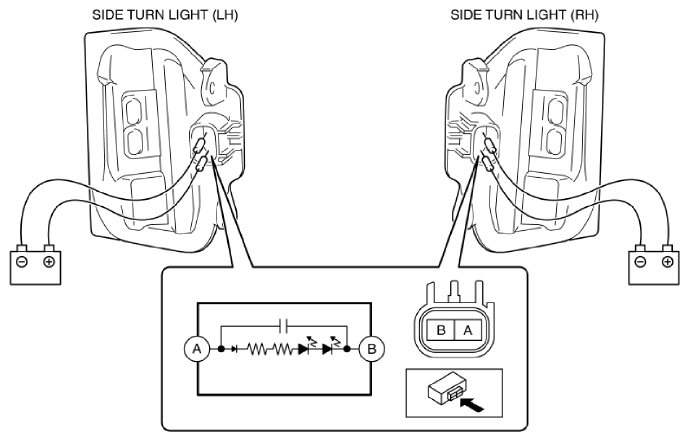

Fig 1: Applying Battery Voltage To Side Turn Light Terminal A
Courtesy of MAZDA MOTORS CORP.
Verify that the LED illuminates.
- If the LED illuminates, go to the next step.
- If the LED does not illuminate, replace the side turn light. (See SIDE TURN LIGHT REMOVAL/INSTALLATION .)
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Power outer mirror connector (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
Verify that the continuity between side turn light terminal and power outer mirror terminal is as indicated in the table.

Fig 2: Identifying Side Turn Light And Power Outer Mirror Connector Terminals
Courtesy of MAZDA MOTORS CORP.

Fig 3: Side Turn Light And Power Outer Mirror Connector Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
