Cluster Switch Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
Remove the front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
Remove bolt.

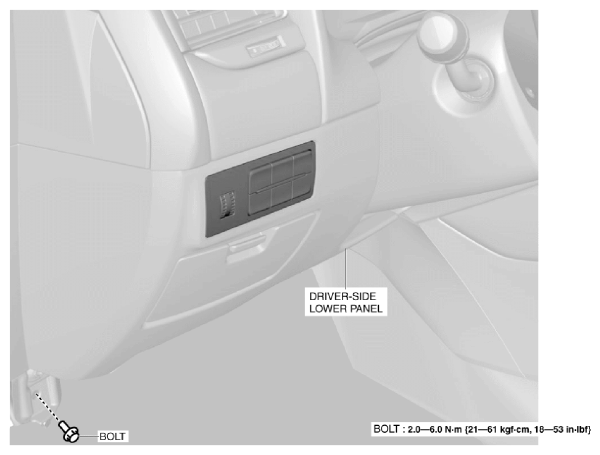

Fig 1: Identifying Driver-Side Lower Panel And Bolt
Courtesy of MAZDA MOTORS CORP.
Pull the driver-side lower panel in the direction of the arrow in the order of (1), (2) while detaching hook, clips and tabs.

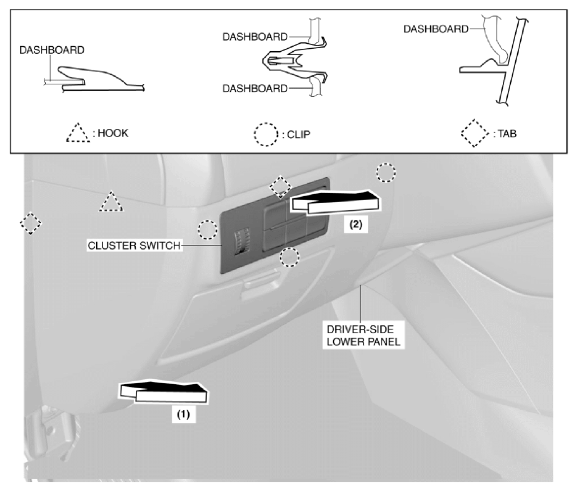

Fig 2: Pulling Out Driver-Side Lower Panel
Courtesy of MAZDA MOTORS CORP.
Set the driver-side lower panel aside.
Remove hooks in the direction of the arrow in the order of (1), (2) shown in the figure.

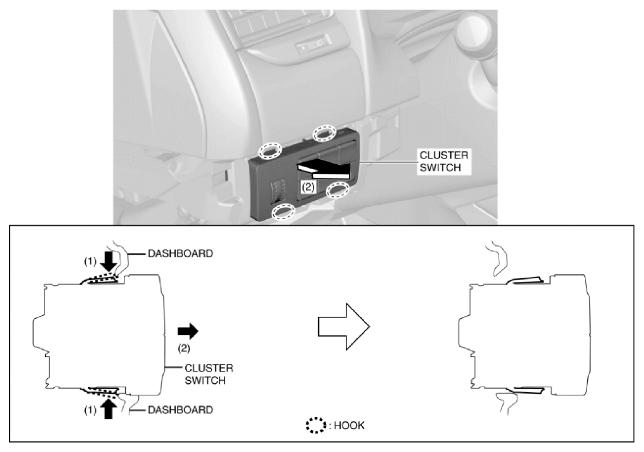

Fig 3: Removing Cluster Switch Hooks
Courtesy of MAZDA MOTORS CORP.
Disconnect the cluster switch connector.
Install in the reverse order of removal.
