Trunk Lid Latch Switch Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
Remove the trunk lid latch and release actuator. (See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

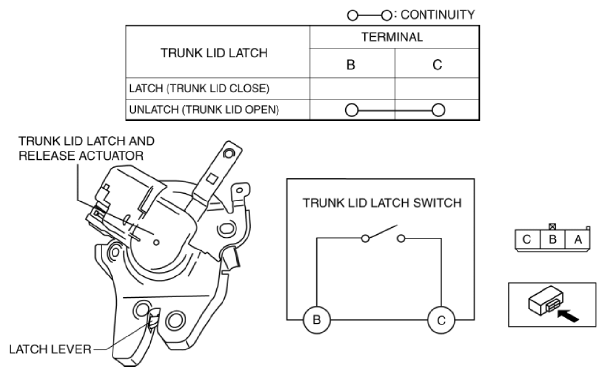

Fig 1: Trunk Lid Latch Switch Terminal Continuity Chart
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the trunk lid latch and release actuator.

NOTE:

When inspecting the latch condition of the trunk lid latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

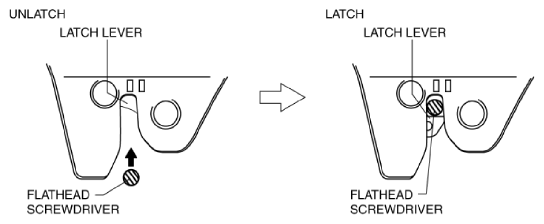

Fig 2: Inspecting Trunk Lid Latch Switch Latch Condition

Courtesy of MAZDA MOTORS CORP.
