Active Air Shutter Location Index

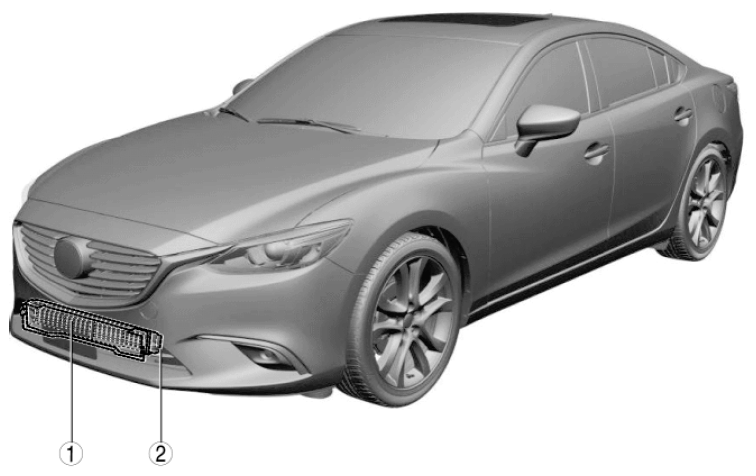

Fig 1: Active Air Shutter And Cover
G10988416Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Active air shutter
(See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
(See ACTIVE AIR SHUTTER INSPECTION .)
2 Active air shutter cover
(See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
