Wiper And Washer Switch Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Rotate the steering wheel in the direction of the arrow shown in the figure to the angle where the service hole is visible.

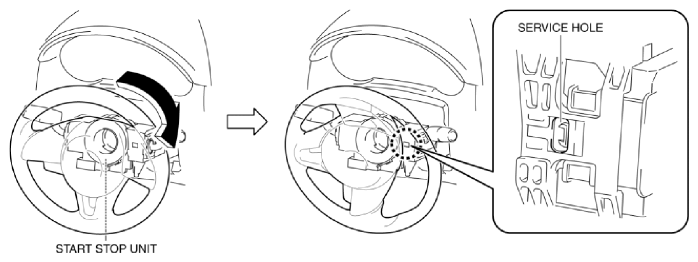

Fig 1: Rotating Steering Wheel
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Into Service Hole
Courtesy of MAZDA MOTORS CORP.
While pressing the wiper and washer switch tab in the direction of the arrow (1) shown in the figure using a flathead screwdriver, pull out the wiper and washer switch in the direction of the arrow (2) shown in the figure to detach the wiper and washer switch tab and the start stop unit.

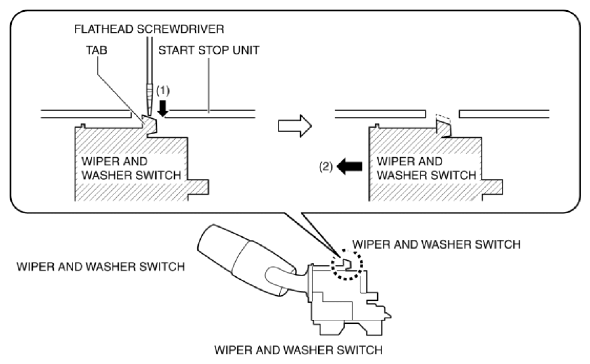

Fig 3: Pressing Wiper And Washer Switch Tab
Courtesy of MAZDA MOTORS CORP.
Remove the wiper and washer switch from the start stop unit.

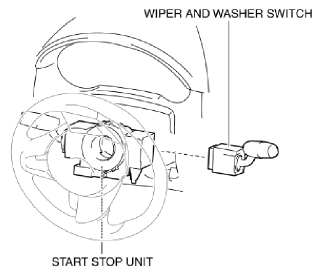

Fig 4: Removing Wiper And Washer Switch From Start Stop Unit
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
