Washer Motor Inspection
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION
.)
- Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION
.)
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION
.)

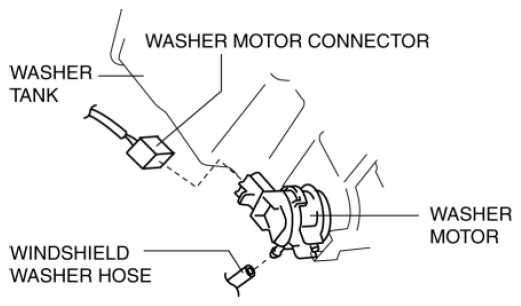

- Disconnect the washer motor connector from the washer motor.
Courtesy of MAZDA MOTORS CORP.
- Disconnect the windshield washer hose from the washer motor.
WARNING:
- Water sprayed on the battery and ground could cause electrocution. When performing the washer motor inspection, prepare a container to collect washer fluid and be careful not to spray washer fluid.

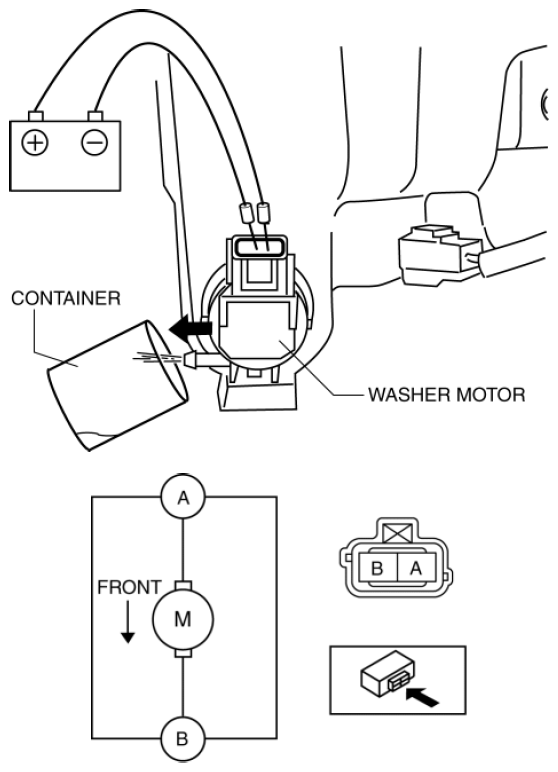

- After connecting washer motor terminal A to the positive battery terminal, and terminal B to ground, verify that washer fluid sprays from the front side of the washer motor.
Courtesy of MAZDA MOTORS CORP.
