Data Link Connector

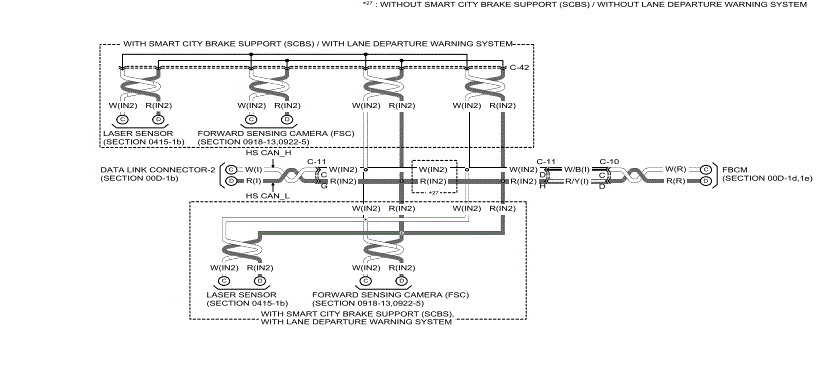

Fig 1: C-10 - C-11 Connector

G00670512

Courtesy of MAZDA MOTORS CORP.

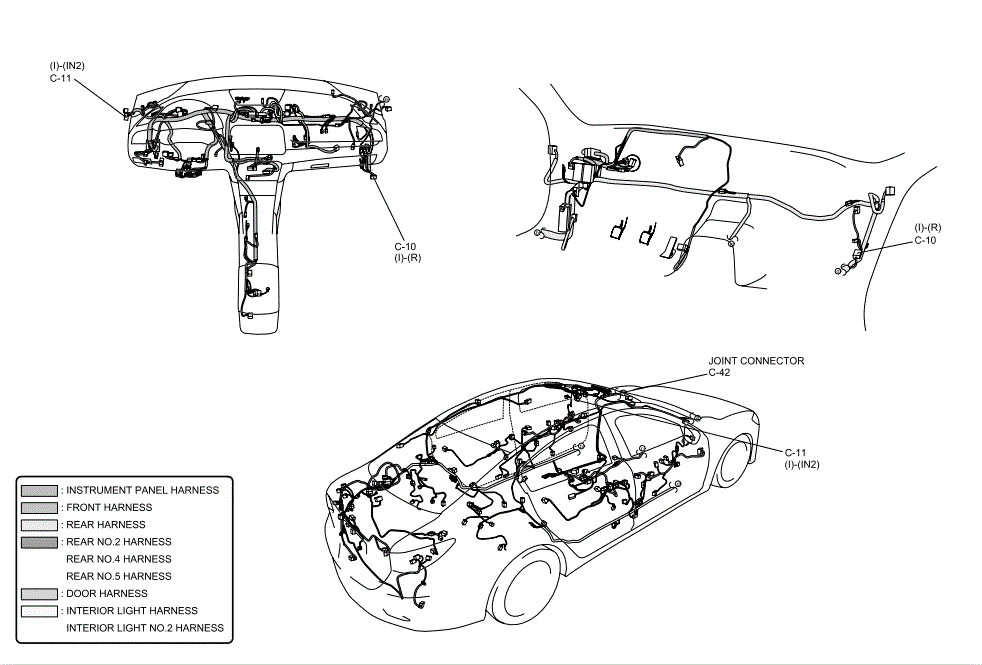

Fig 2: C-10 - C-11 Connector Location

G00670508

Courtesy of MAZDA MOTORS CORP.
