Blower Motor Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

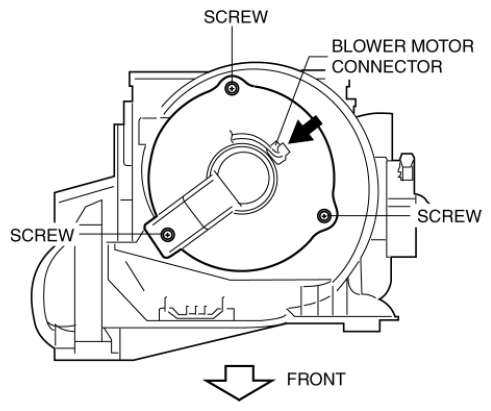

    Fig 1: Identifying Blower Motor Connector And Screws
    G10986629Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the blower motor.

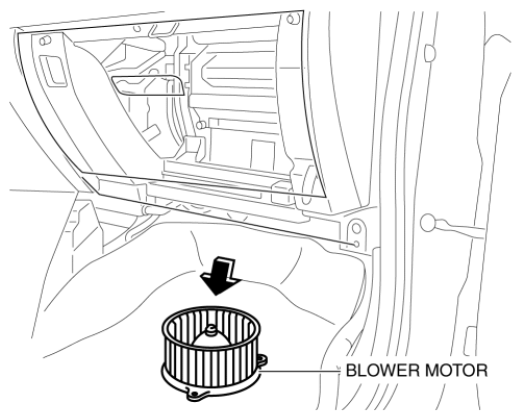

    Fig 2: Removing Blower Motor
    G10986630Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
