Rear Buckle Installation Note

  1. After installing the rear buckle, place it as shown in the figure.

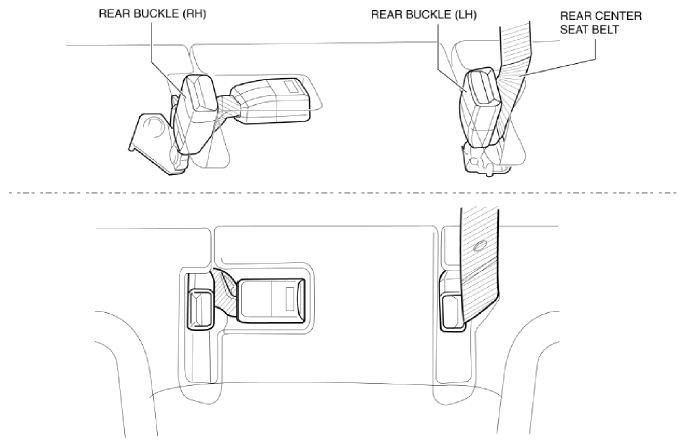

    Fig 1: Identifying Rear Buckle (LH/RH) And Rear Center Seat Belt
    G10987054Courtesy of MAZDA MOTORS CORP.
