Clip Removal Note

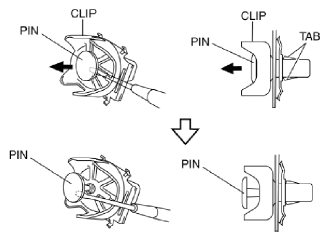

Pull out the pin with flathead screwdriver as shown in the figure.

Fig 1: Pulling Curtain Air Bag Module Pin Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.

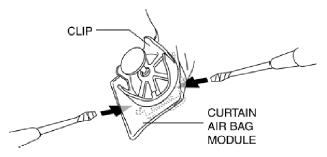

Insert a flathead screwdriver into shown in the figure.

Fig 2: Inserting Flathead Screwdriver Into Curtain Air Bag Module
Courtesy of MAZDA MOTORS CORP.

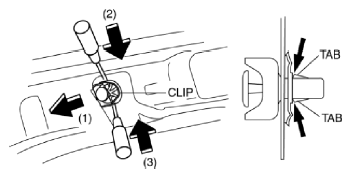

While pulling the curtain air bag in the direction of the arrow shown in the figure (1), detach tabs by prying with a flathead screwdriver in the direction of the arrow (2) (3).

Fig 3: Prying Tabs Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Remove the clip from the body.
